Aluminium Storage Boxes

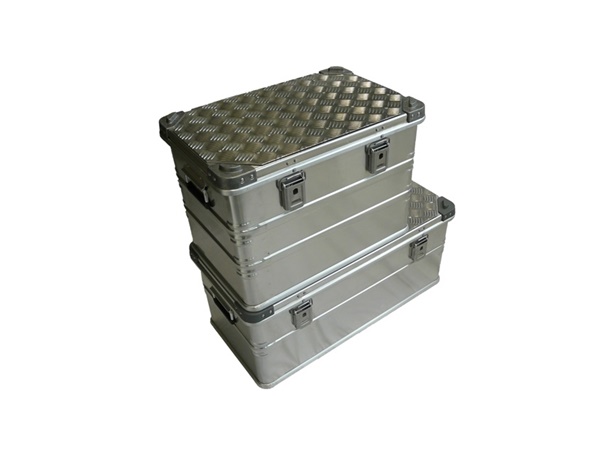

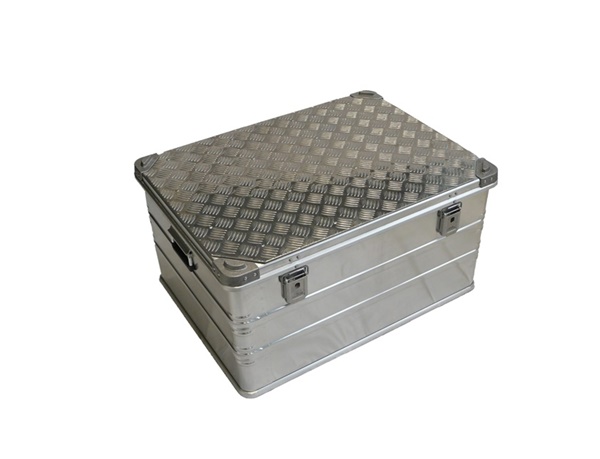

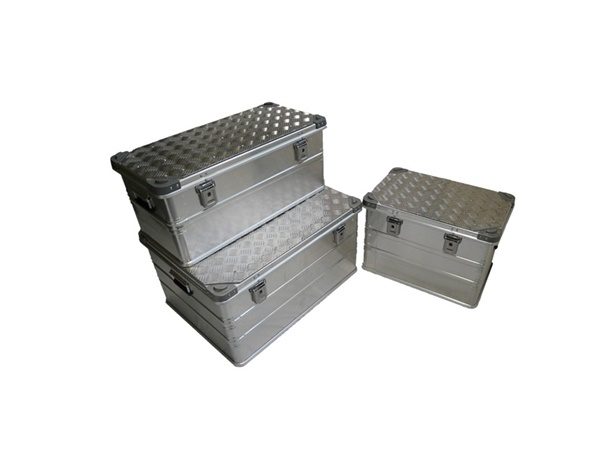

Seven sizes of boxes are available. URLT/009907 - URLT/001697 & URLT/001450 shownSeven sizes of boxes are available. URLT/009907 - URLT/001697 & URLT/001450 shown

Product Information

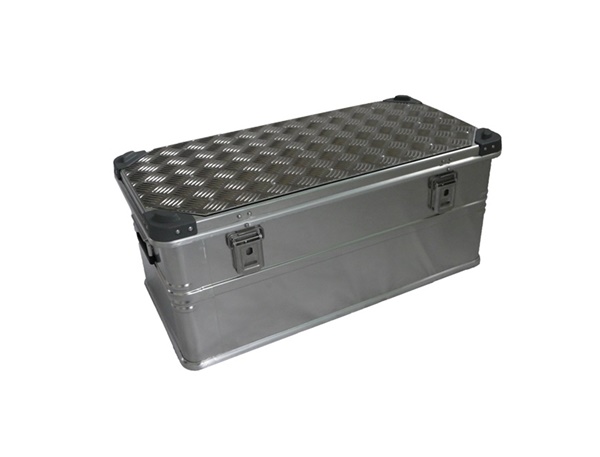

The illustrations show boxes supplied with aluminium checker plate to the lid which provides additional strength for demanding railway applications. Boxes can be partitioned to order to suit customers’ requirements.

These containers are made from aluminium, giving great strength and light weight. Ideal where weight is an important factor.

These boxes are available in seven different sizes see Part Numbers for details.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Part Number Network Rail Reference Description External Size Internal Size Weight
Storage box complete with checker plate lid Part Number: LT/SB/620/LID Network Rail Reference: N/A Description: Storage box with checker plate lid External Size: 600 x 400 x 240mm Internal Size: 545 x 345 x 220mm Weight: 5.6kg
Storage box complete with checker plate lid Part Number: LT/SB/640/LID Network Rail Reference: URLT/009907 Description: Storage box with checker plate lid External Size: 600 x 400 x 400mm Internal Size: 545 x 345 x 375mm Weight: 6.5kg
Storage box complete with checker plate lid Part Number: LT/SB/833/LID Network Rail Reference: URLT/001697 Description: Storage box with checker plate lid External Size: 800 x 400 x 330mm Internal Size: 745 x 345 x 305mm Weight: 8.0kg
Storage box complete with checker plate lid Part Number: LT/SB/840/LID Network Rail Reference: URLT/001450 Description: Storage box with checker plate lid External Size: 800 x 600 x 400mm Internal Size: 745 x 540 x 380mm Weight: 12.5kg
Storage box complete with checker plate lid Part Number: LT/SB/860/LID Network Rail Reference: URLT/010602 Description: Storage box with checker plate lid External Size: 800 x 600 x 600mm Internal Size: 745 x 540 x 585mm Weight: 14.0kg
Storage box complete with checker plate lid Part Number: LT/SB/1250/LID Network Rail Reference: N/A Description: Storage box with checker plate lid External Size: 1200 x 800 x 500mm Internal Size: 1150 x 740 x 480mm Weight: 26.0kg
Part Number: N/A Network Rail Reference: 0111/107229 Description: Partitioned box External Size: 800 x 400 x 330mm Internal Size: 745 x 345 x 305mm Weight: 9.0kg
Description: User for:

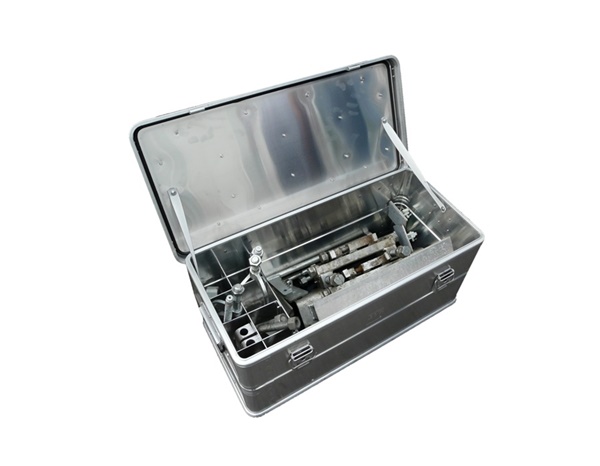

0111/107229 Partitioned box for rail alignment set Description: Storing rail alignment set

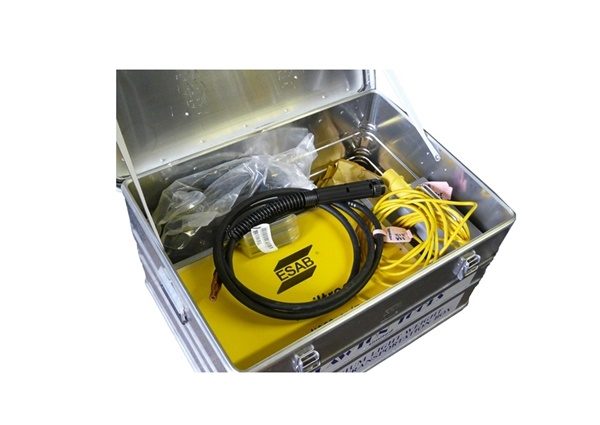

0111/107229 Partitioned box for storing welding equipment Description: Storing welding equipment

Standard Features:-

  • Ribbed body for strength with light weight
  • Stacking locators on each corner
  • Tough plastic protected grip handles (weight capacity = 35kg per handle)
  • Recessed base prevents ingress of moisture when stored on damp floor

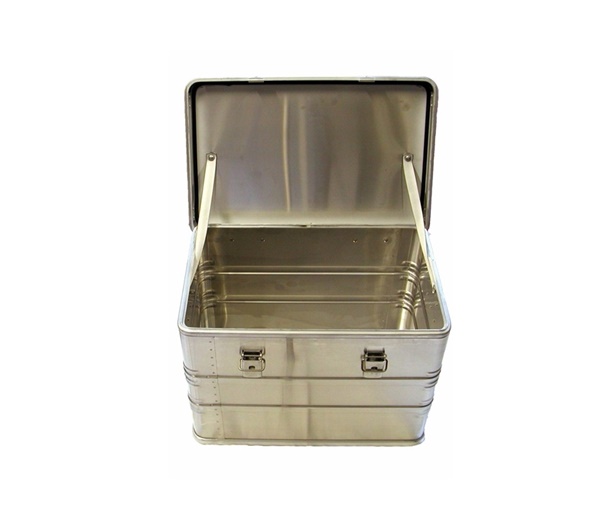

  • Retaining strap on lid prevents hinge damage
  • Rubber seal on lid gives showerproof container
  • Lockable catches

Optional Additional Features:-

  • 3mm aluminium checker plate to lid
  • 3mm aluminium checker plate to base
  • 3mm internal plain rubber mat

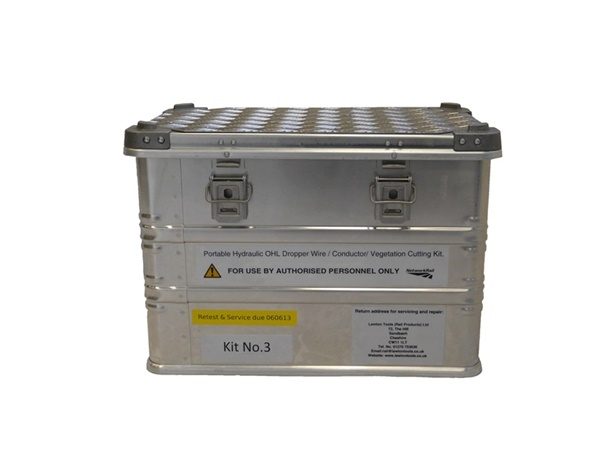

  • Self adhesive vinyl labels designed to your requirements

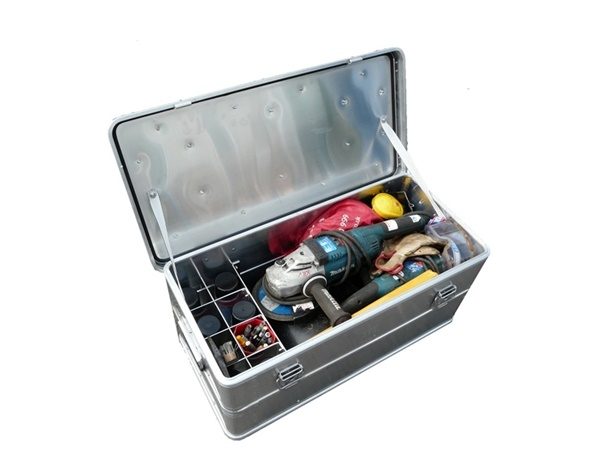

0111-107229 is a specially partitioned version LT/SB/833 800 x 400 x 330mm. This box ideal either for the storage of the rail alignment kits and for welding kits. Within the box are 8 off 85 x 85 x 200mm compartments at one end, which provide locations for small parts making retrieval easy or can be used to provide protection for items such as aerosols, preventing damage to the aerosol and paint being released inside of the box. Please refer to the PDF data sheet.
