0039/001600 Band-It C0010039/001600 Band-It C001

Product Information

The use of stainless steel banding has been used on the railway infrastructure for many years for a variety of applications including:

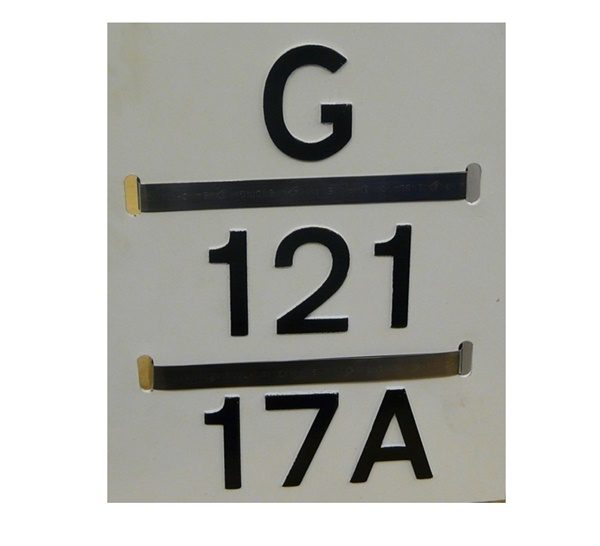

  • Securing I.D. plates to stanchions
  • Securing datum plates used for track geometry surveys
  • Securing I.D. plates for signals
  • Banding together sleepers or lengths of rail sections to deter vandalism or pilferage

Two models of tensioning tools can be supplied.  The larger Band-It C001 tool PADS reference 0039/001600 is generally used for the banding of sleepers or lengths of rail section to help prevent vandalism or pilferage.  The smaller Band-It Bantam tool Part Number URLT/024153 is used for the securing of ID stanchion plates and datum plates.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Network Rail Reference Description
0039/001600 Band-It C001 Network Rail Reference: 0039/001600 Description: Band-It C001
URLT/024153 Band-It Bantam Network Rail Reference: URLT/024153 Description: Band-It Bantam

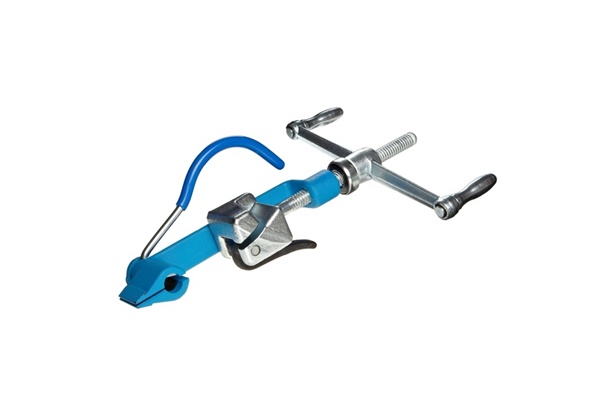

The main features of the Band-It C001 PADS reference 0039/001600 are:

  • Tensions to over 2400 lbs of force and cuts off the tail of the clamp being formed
  • For use with band widths 3/16″ to 3/4″
  • Used to apply BAND-IT stainless steel band, galvanised carbon steel band, BAND-FAST strapping
  • Spring loaded gripper lever improves ease of use
  • Weight 4.3lbs/1.95kg

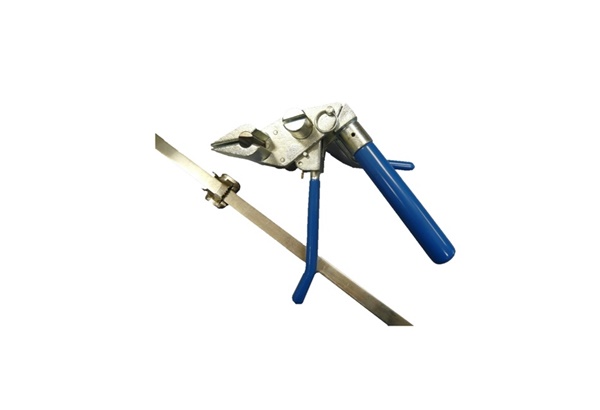

The main features of the Band-It Bantam Part Number URLT/024153 are:

  • Compact size and low weight
  • Ease of use
  • Speed
  • Ratchet tensioning of the stainless steel band is achieved by squeezing the handles. This significantly increases the speed of the tensioning of the band
  • Integral band cutting lever
  • Suitable for use on 3/16” (4.75mm) to 3/4” (19.05mm) wide stainless steel bands
