Insulated Tool Kit for Tightening Hardlock Nuts on Main Adjustable Stretcher Bars

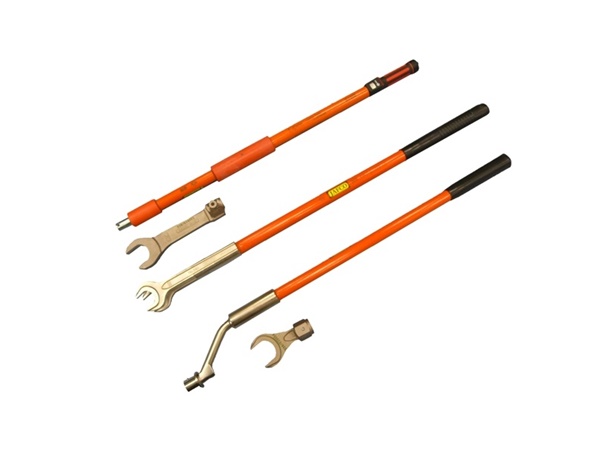

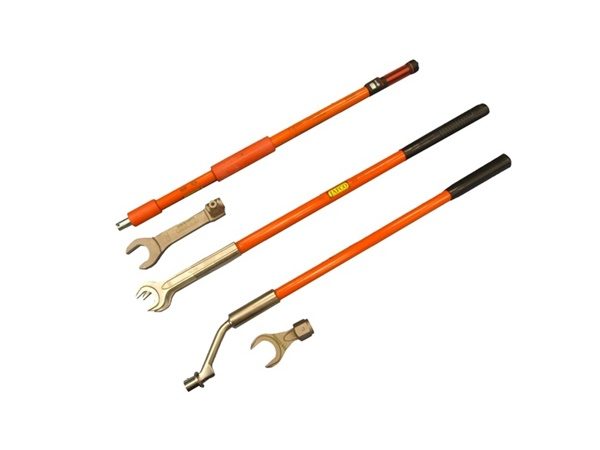

0039/033067 Insulated main adjustable stretcher bar tool kit0039/033067 Insulated main adjustable stretcher bar tool kit

Product Information

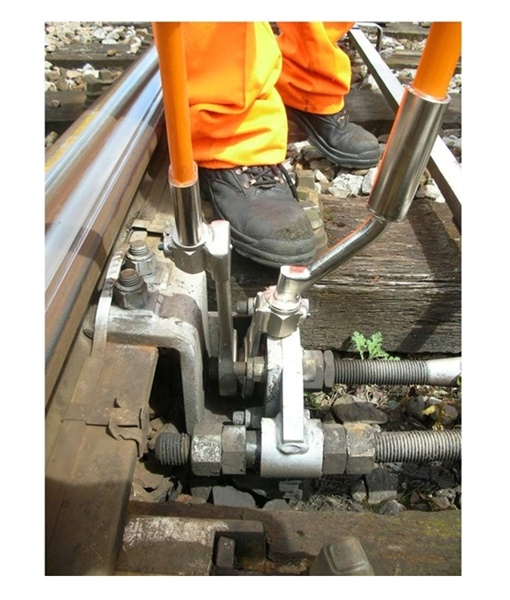

Developed with Network Rail to enable the maintenance of Hardlock nuts securing adjustable stretcher bars on Corus manufactured RT60 switches where accessibility is limited. This tool kit can also be used on any other RT60 layouts.

Certificate of Acceptance
Number PA05/02661

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Network Rail Reference Description
0039/033067 Insulated main adjustable stretcher bar tool kit Network Rail Reference: 0039/033067 Description: Insulated main adjustable stretcher bar tool kit
Network Rail Reference: Comprises:

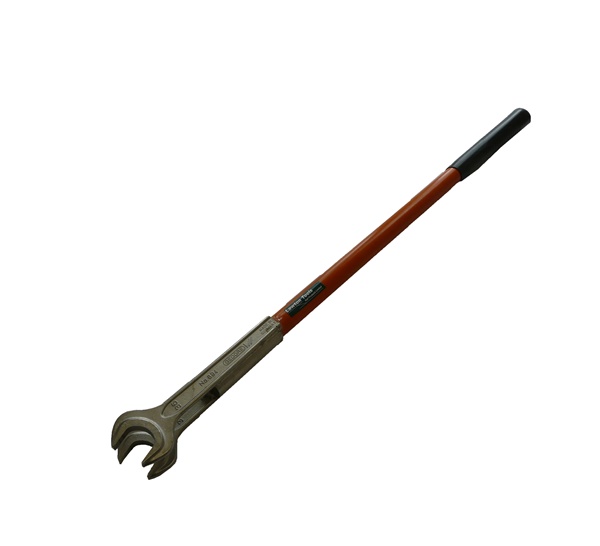

0039/033068 Insulated twin headed 36mm holding spanner Network Rail Reference: 0039/033068 Description: Insulated twin headed 36mm holding spanner

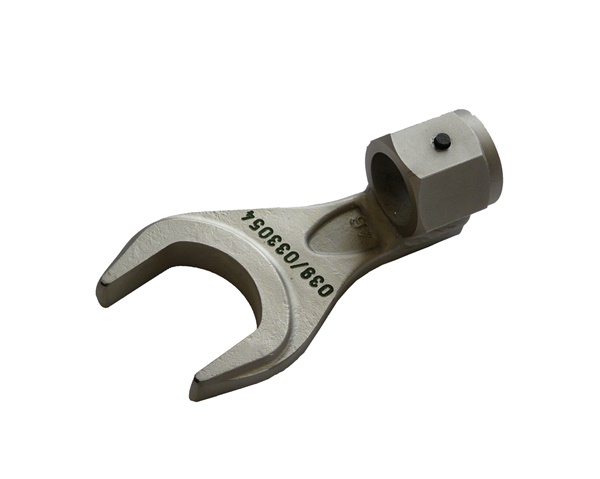

0039/033054 46mm AF open ended short extension piece for Hardlock nuts (female nut) Network Rail Reference: 0039/033054 Description: 46mm AF open ended short extension piece for Hardlock nuts (female nut)

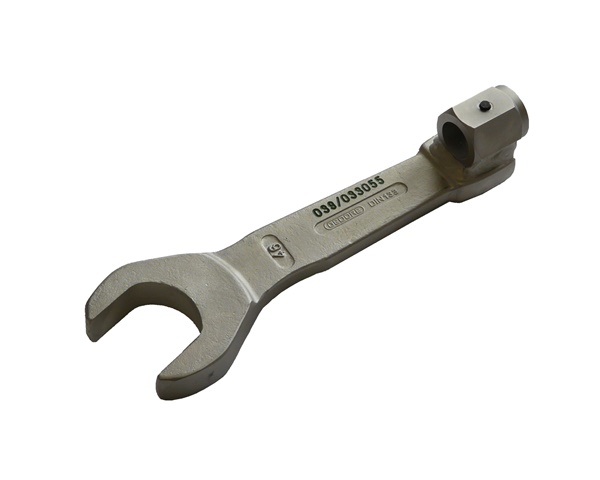

0039/033055 46mm AF open ended long extension piece for Hardlock nuts (male nut) Network Rail Reference: 0039/033055 Description: 46mm AF open ended long extension piece for Hardlock nuts (male nut)

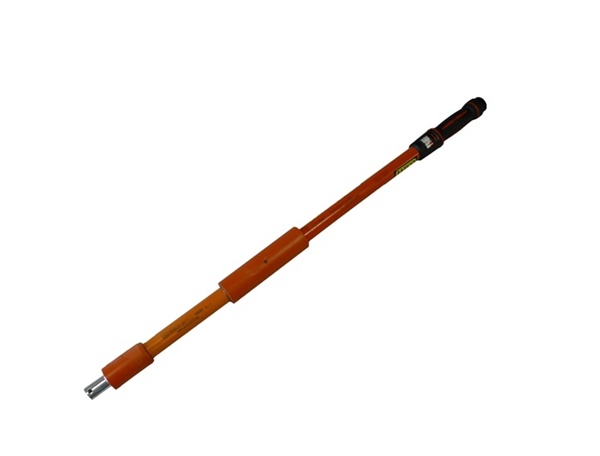

0094/008030 Insulated torque wrench range 100-475Nm with 22mm spigot fitting Network Rail Reference: 0094/008030 Description: Insulated adjustable torque wrench range 100 – 475Nm,
graduations at 100, 118, 150, 200, 220, 250, 300, 340, 420 and 475Nm
with 22mm dia. male spigot
Manufactured and tested to BS8020:2011

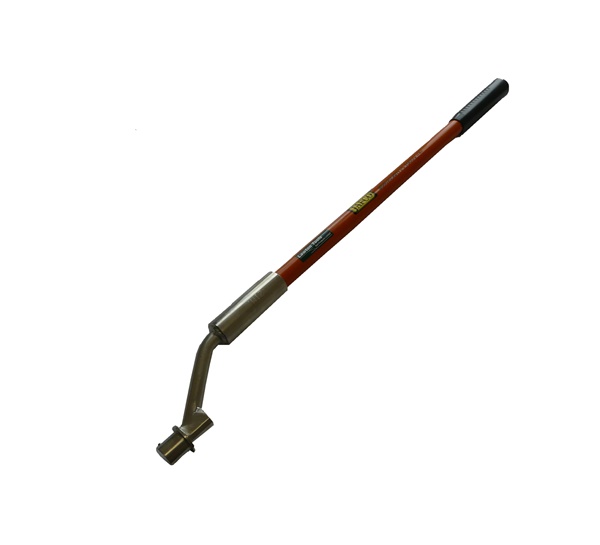

0039/033070 Insulated offset handle with 28mm spigot for short extension Network Rail Reference: 0039/033070 Description: Insulated offset handle with 28mm spigot for short extension
Manufactured and tested to BS8020:2011

All parts (where applicable) manufactured to BS8020:2011 for insulating hand tools for live line working on/near conductor rail systems at voltages up to 1000V ac or 1500V dc.
