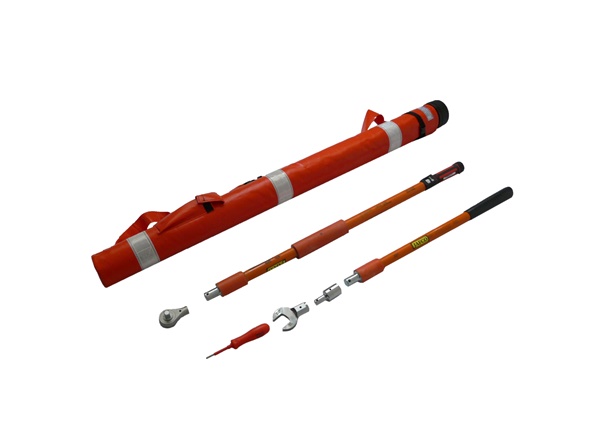

Insulated Torque Wrench Kit

0094/008029 Insulated torque wrench kit0094/008029 Insulated torque wrench kit

Product Information

Developed to enable S&T engineers to apply torque loads to fasteners in live line areas. The design facilitates the use of a variety of both small series 16mm female and large series 22mm female fittings to be used, including open and ring end fittings, ratchet heads and special end fittings commonly used by engineers during installation or maintenance tasks.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Network Rail Reference Description
0094/008029 Insulated torque wrench kit Network Rail Reference: 0094/008029 Description: Insulated torque wrench kit
Network Rail Reference: Comprises:
0094/008030 Insulated adjustable torque wrench 100-475Nm Network Rail Reference: 0094/008030 Description: Insulated adjustable torque wrench range 100 – 475Nm,
graduations at 100, 118, 150, 200, 220, 250, 300, 340, 420 and 475Nm
with 22mm dia. male spigot
Manufactured and tested to BS8020:2011

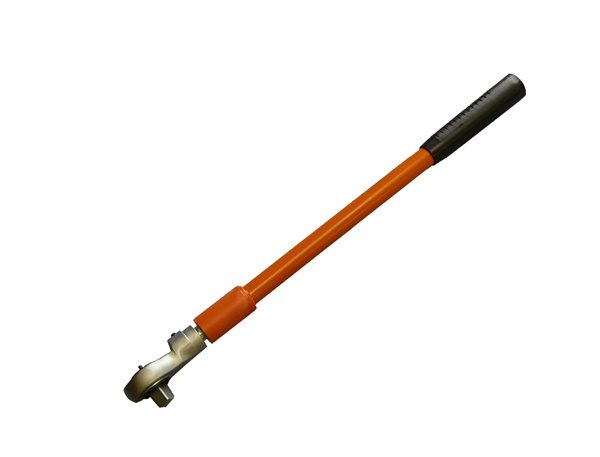

0094/008035 Insulated handle/breaker bar 600mm long with 22mm male spigot (supplied with 16mm to 22mm adaptor 0094/008031) Network Rail Reference: 0094/008035 Description: Insulated handle/breaker bar 600mm long with 22mm male spigot
supplied with 16mm to 22mm adaptor (0094/008031)
Manufactured and tested to BS8020:2011
0094/008031 16mm to 22mm spigot adaptor Network Rail Reference: 0094/008031 Description: 16mm to 22mm spigot adaptor
0094/008032 1/2" square drive ratchet head Network Rail Reference: 0094/008032 Description: 1/2" square drive ratchet head

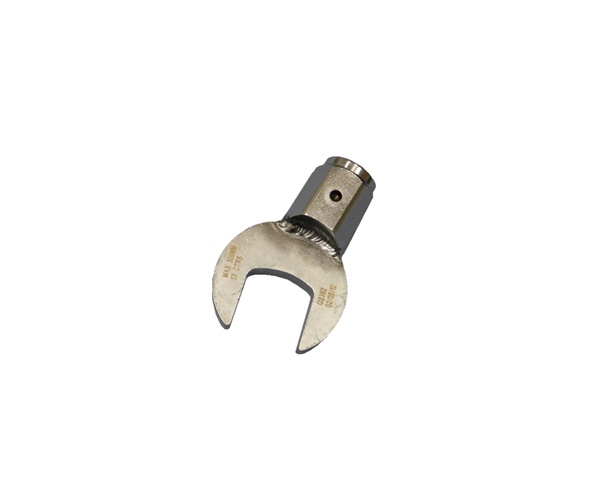

0094/008036 11/16" BSW (30mm) open ended fitting Network Rail Reference: 0094/008036 Description: 11/16" BSW (30mm) open ended fitting

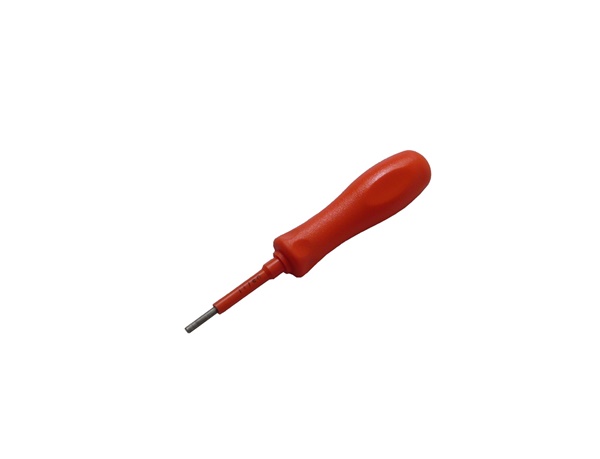

0094/008033 Insulated release tool Network Rail Reference: 0094/008033 Description: Insulated release tool
Manufactured to BSEN60900

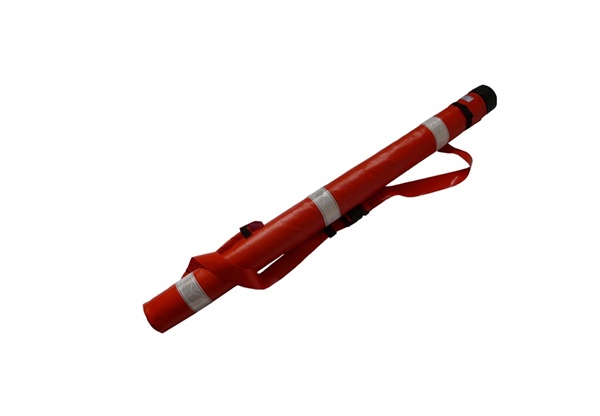

0094/008034 Storage bag Network Rail Reference: 0094/008034 Description: Storage bag
  • Graduated in Nm (Newton metres) only to help prevent misreading.
  • Range 100Nm to 475Nm
  • Graduated only with torque values required for normal rail maintenance and installation requirements on Network Rail’s infrastructure. This again helps to prevent misreading and therefore the wrong torque value being applied.
  • Spigot end, enabling a variety of end fittings including ratchet heads to be used.
  • Insulated handle/breaker bar can be used with all end standard 16mm/22mm female end fittings, so can be used as wrench or ratchet handle.
  • 11/16” BSW (30mm) open ended fitting included in the kit, to cover for the majority of torque applications in point sets, including traditional 11/16” BSW square or hexagon fasteners and M20 Hardlock nuts and bolts.
