Product Information
Now used extensively by engineers to transfer levels or check alignment both vertically and horizontally over distances up to 33m/100ft.
Three-point plumb and level point projection laser accurately transfers and aligns plumb up/down, front level and align points with an accuracy of +/- 1/4″ at 100 ft. With quick-setting Smart Pendulum System self-levels, indicates out-of-level condition and locks when switched off. Multi-purpose attachment positions the mount with magnets, strap or threaded mounts 1/4″-20 UNC and 5/8″-11 UNC.
| Thumbnail | Part Number | Description | |
|---|---|---|---|
|

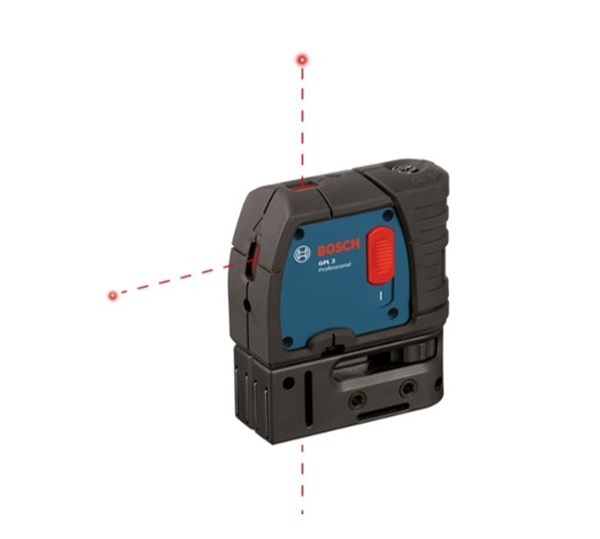

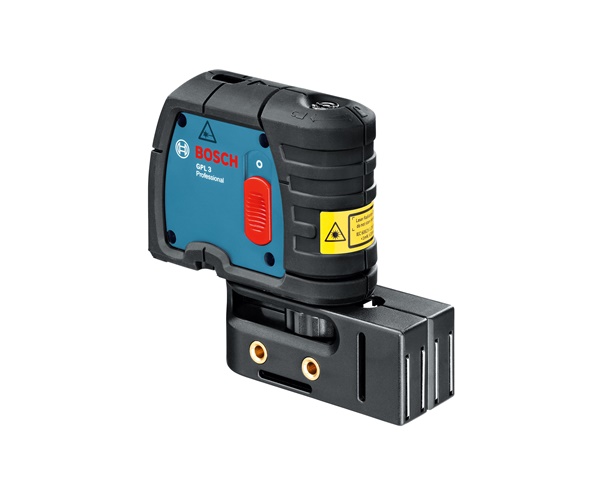

Part Number: 0111/108605 | Description: Bosch GPL3 - 3 point self levelling alignment laser |
- Three point plumb and level point projection – accurately transfers and aligns level, plumb, 90° and grade points
- Diamond cut beam splitter – single diode projects all points for superior accuracy
- Smart pendulum system – self levels and indicates out-of-level condition; locks when switched off
- Multipurpose attachment – position and mount with magnets, strap or threaded mounts (5/8″-11, 1/4″-20)
Specifications:
- Accuracy up to ±1/4-in @ 100-ft
- Battery voltage: 1.5
- Dimensions: 4.125″ x 3.125″ x 1.625″ – 104mm x 80mm x 41mm
- Laser diode class II 635 nm, = 1 mW
- Levelling type: Self-levelling, up to 5°
- Mount thread 1/4-20
- Range up to 100-ft
- Weight 0.9lb / 0.4kg
