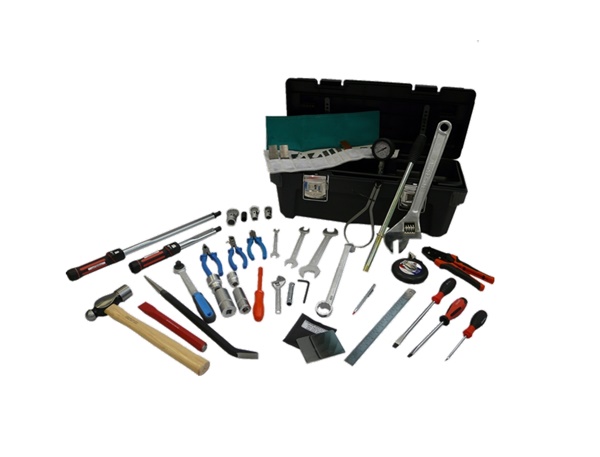

0086/003003 Point care tool kit0086/003003 Point care tool kit

Product Information

Developed originally with British Rail, this maintenance tool kit is still supplied and used extensively on the rail network.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Part Number Network Rail Reference Description
0086/003003 Point care tool kit Part Number: N/A Network Rail Reference: 0086/003003 Description: Point care tool kit
Part Number: Comprises:

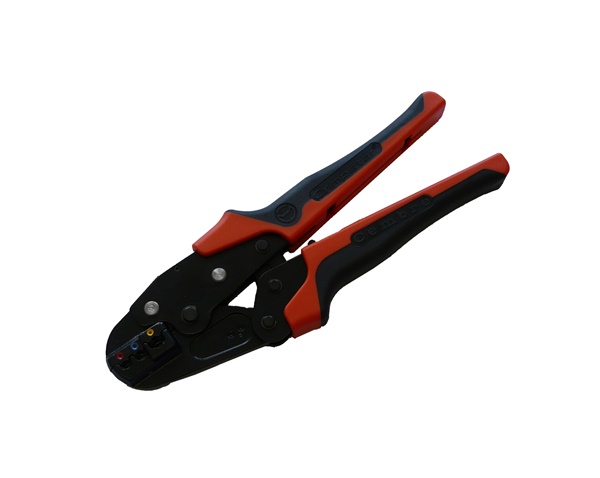

0039/008427 Ratchet crimping tool Part Number: N/A Network Rail Reference: 0039/008427 Description: Ratchet crimping tool

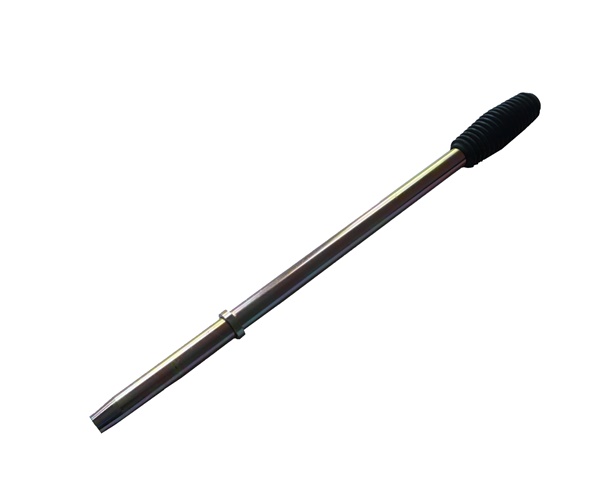

0086/032590 Hand pump lever Part Number: N/A Network Rail Reference: 0086/032590 Description: Hand pump lever

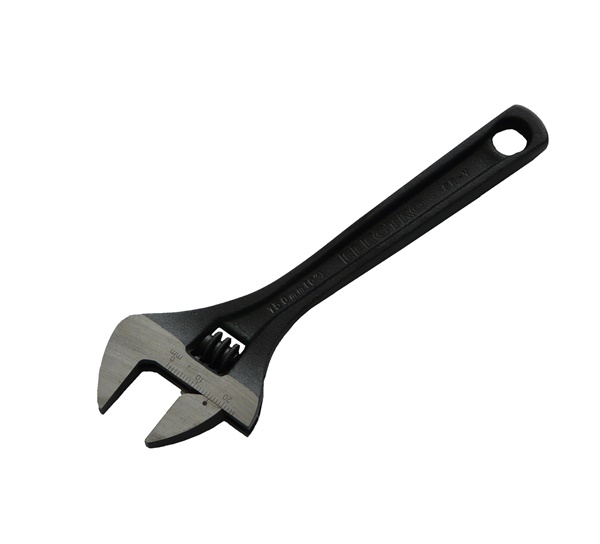

0086/011616 Adjustable spanner 6" Part Number: N/A Network Rail Reference: 0086/011616 Description: Adjustable spanner 6"

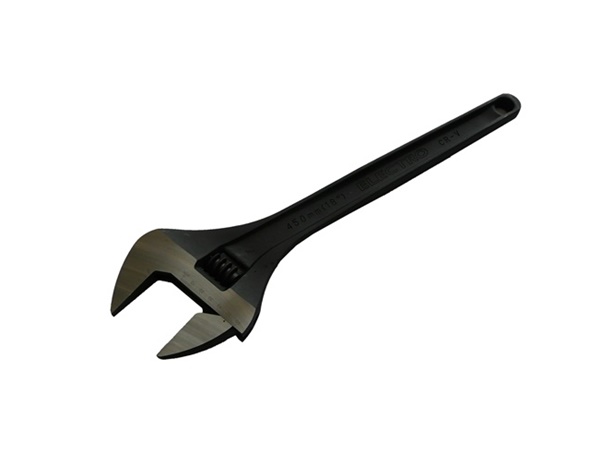

0086/011614 Adjustable spanner 18" Part Number: N/A Network Rail Reference: 0086/011614 Description: Adjustable spanner 18"

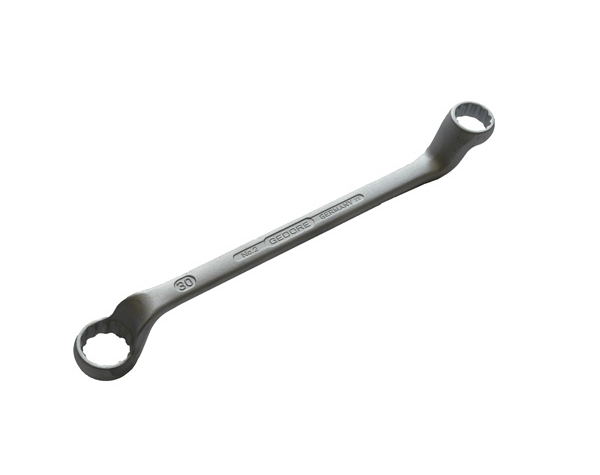

0086/011610 Ring spanner 24mm x 30mm Part Number: N/A Network Rail Reference: 0086/011610 Description: Ring spanner 24mm x 30mm

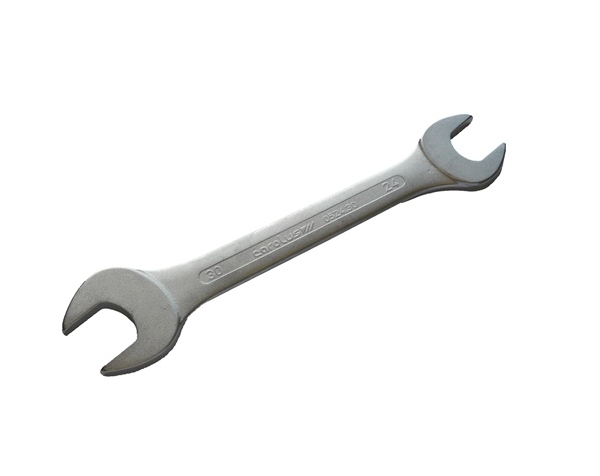

0086/011611 Open ended spanner 24mm x 30mm Part Number: N/A Network Rail Reference: 0086/011611 Description: Open ended spanner 24mm x 30mm

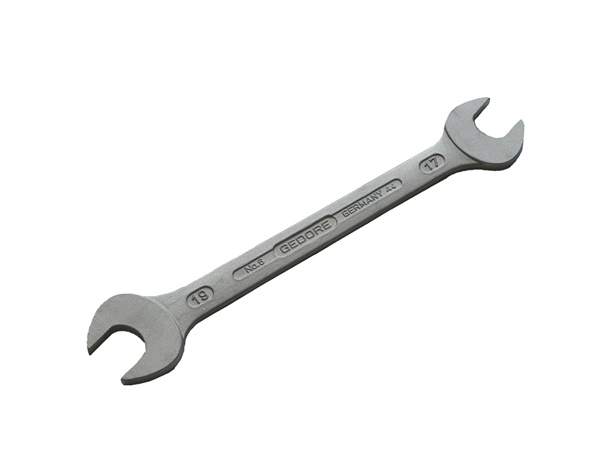

0086/011612 Open ended spanner 17mm x 19mm Part Number: N/A Network Rail Reference: 0086/011612 Description: Open ended spanner 17mm x 19mm

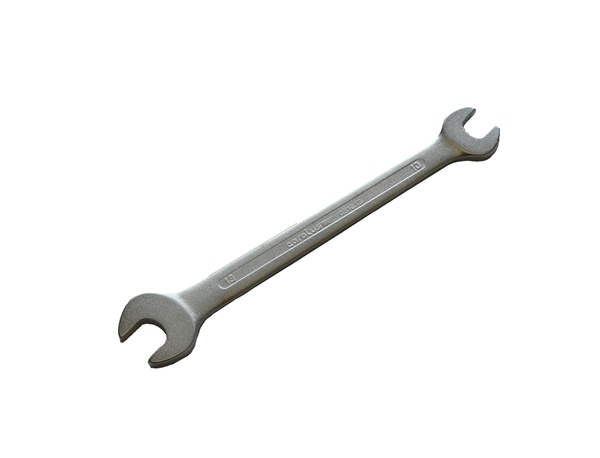

0086/011613 Open ended spanner 10mm x 13mm Part Number: N/A Network Rail Reference: 0086/011613 Description: Open ended spanner 10mm x 13mm

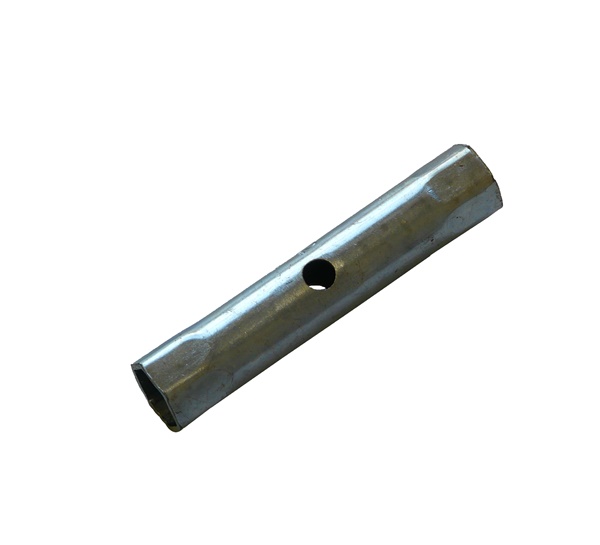

0086/011615 Box spanner 12mm x 13mm Part Number: N/A Network Rail Reference: 0086/011615 Description: Box spanner 12mm x 13mm

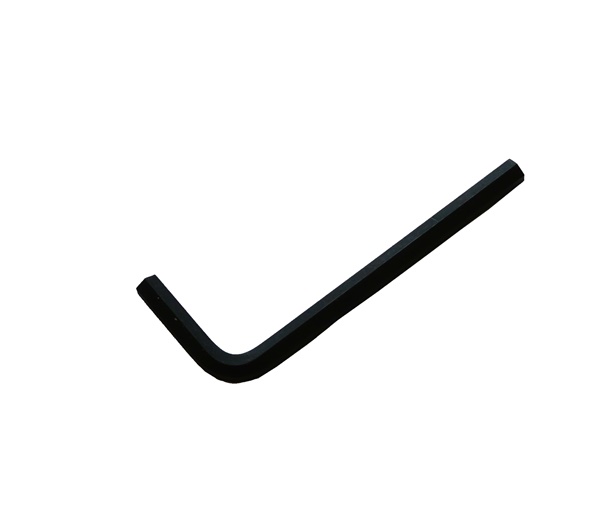

0086/011625 Hexagon key 6mm Part Number: N/A Network Rail Reference: 0086/011625 Description: Hexagon key 6mm

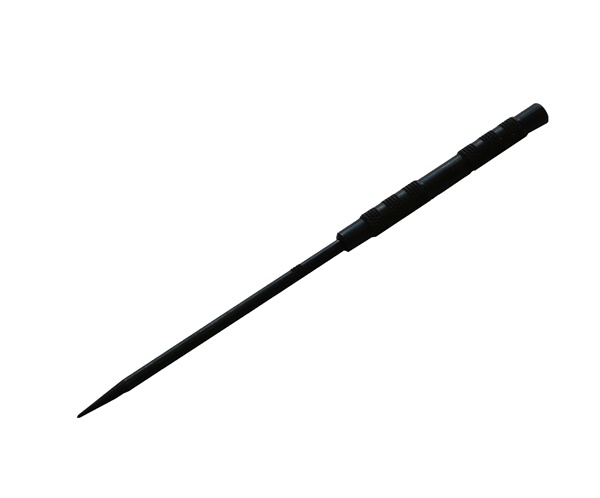

0086/011635 Scriber Part Number: N/A Network Rail Reference: 0086/011635 Description: Scriber

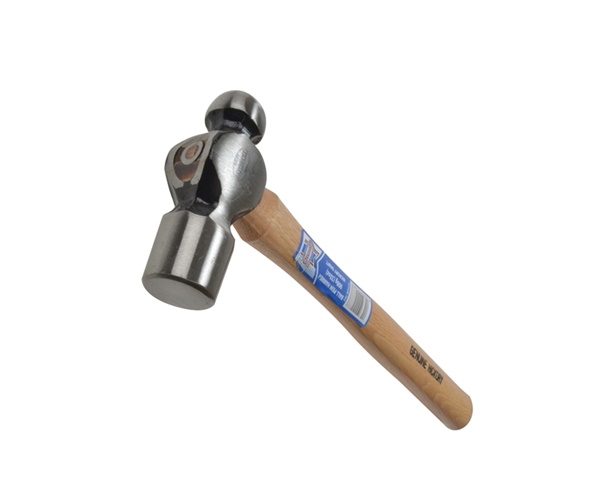

0086/011632 Ball pein hammer 2lb Part Number: N/A Network Rail Reference: 0086/011632 Description: Ball pein hammer 2lb

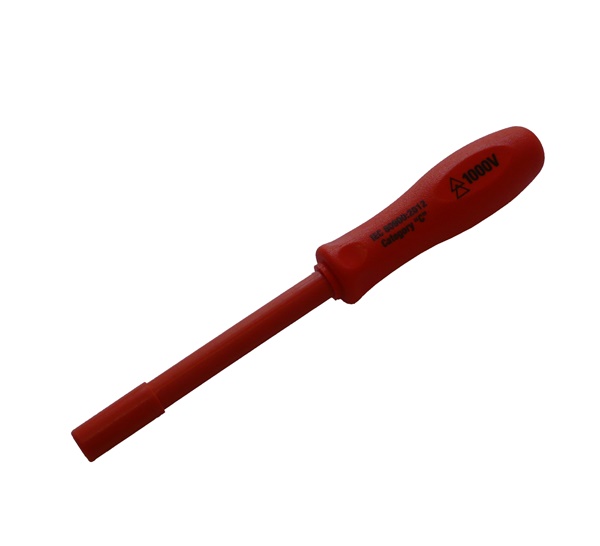

0086/011631 Nut spinner 2BA insulated Part Number: N/A Network Rail Reference: 0086/011631 Description: Nut spinner 2BA insulated

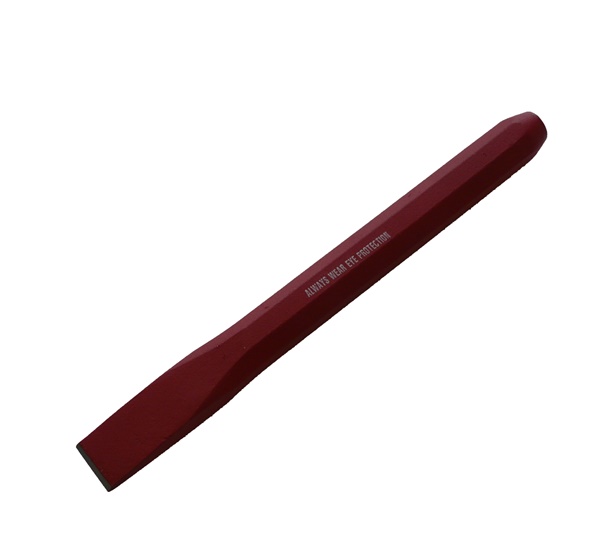

0086/011633 Chisel 1" x 9" Part Number: N/A Network Rail Reference: 0086/011633 Description: Chisel 1" x 9"

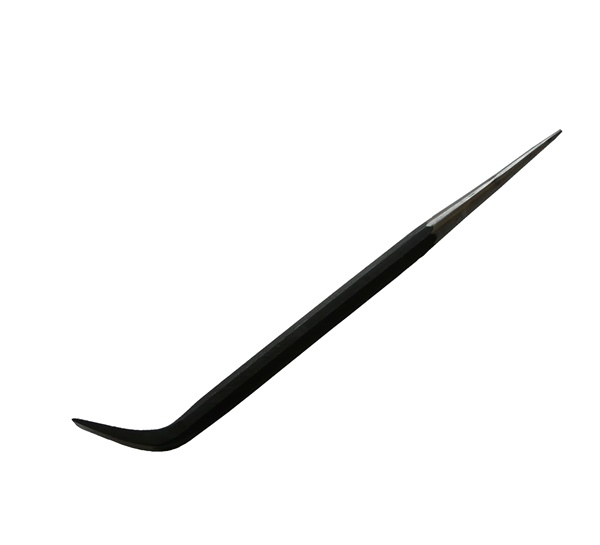

0086/011634 Crowbar 18" heel and point Part Number: N/A Network Rail Reference: 0086/011634 Description: Crowbar 18" heel and point

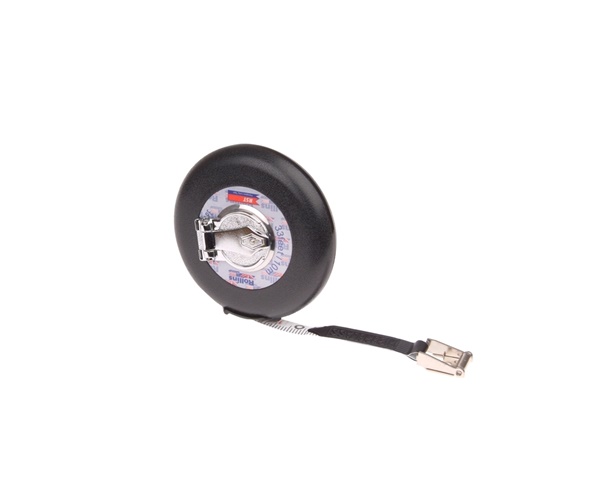

0086/011636 Tape fibron 10m/33 ft Part Number: N/A Network Rail Reference: 0086/011636 Description: Tape fibron 10m/33 ft

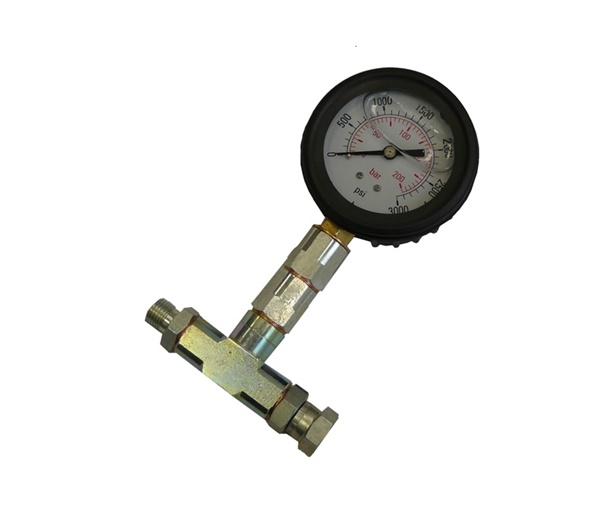

0086/011638 Pressure gauge Part Number: N/A Network Rail Reference: 0086/011638 Description: Pressure gauge

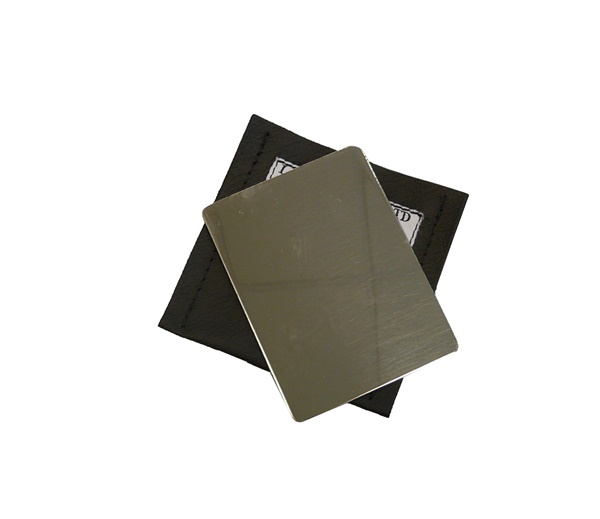

0039/042348 Inspection mirror and wallet Part Number: N/A Network Rail Reference: 0039/042348 Description: Inspection mirror and wallet

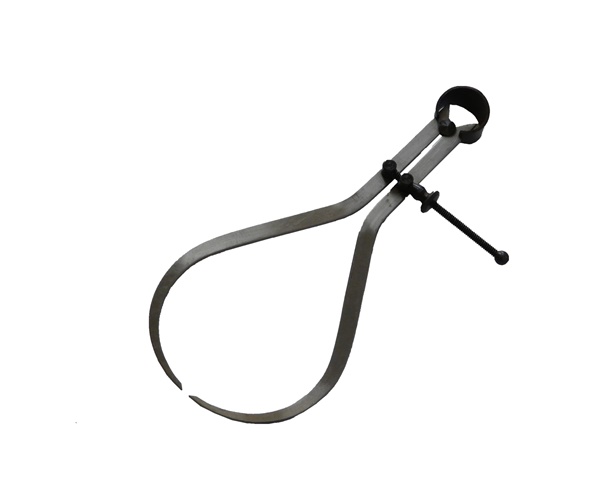

0086/011646 Caliper outside 8" Part Number: N/A Network Rail Reference: 0086/011646 Description: Caliper outside 8"

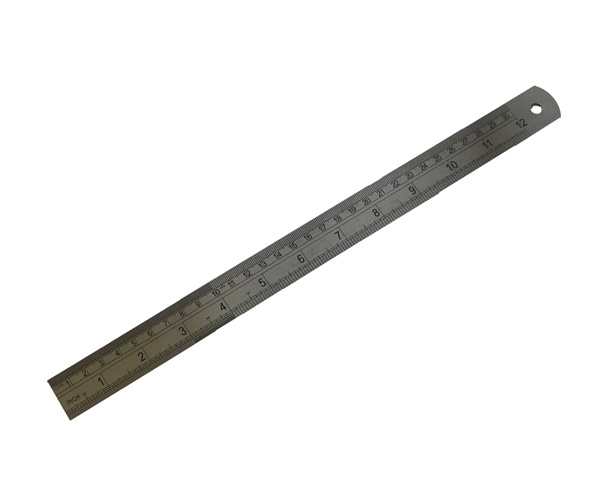

0086/011637 Rule 300mm/12" Part Number: N/A Network Rail Reference: 0086/011637 Description: Rule 300mm/12"

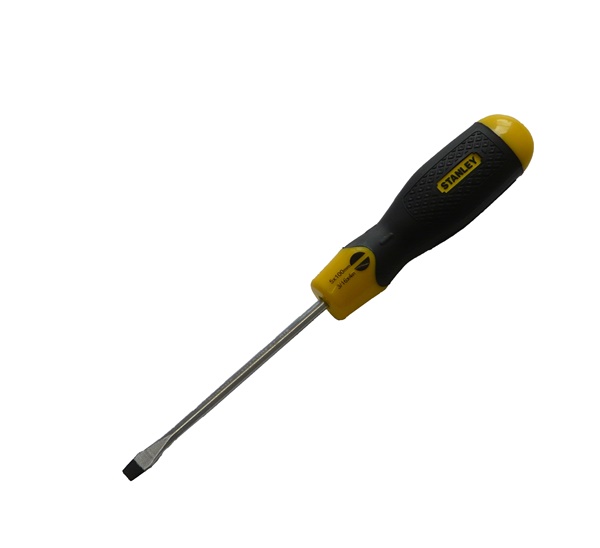

0086/011624 Screwdriver 4" Part Number: N/A Network Rail Reference: 0086/011624 Description: Screwdriver 4"

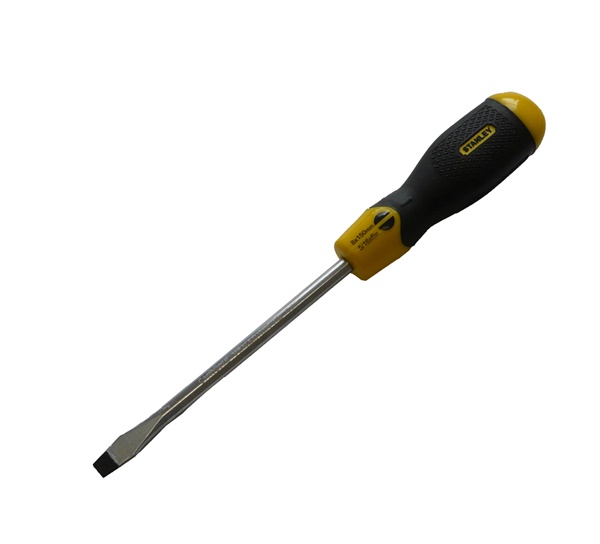

0086/011623 Screwdriver 8" Part Number: N/A Network Rail Reference: 0086/011623 Description: Screwdriver 8"

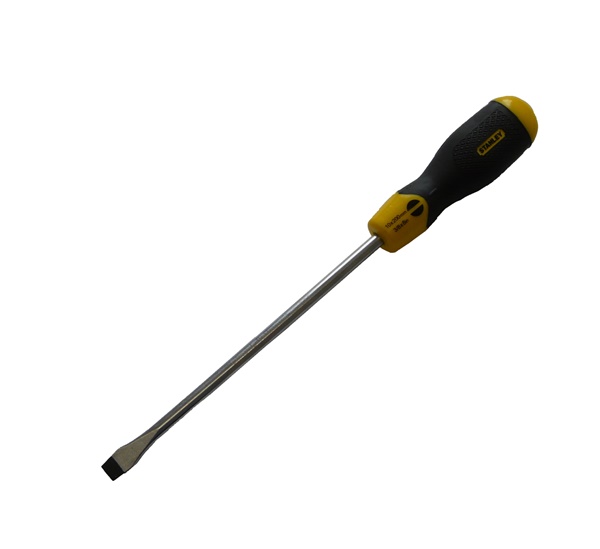

0086/011622 Screwdriver 10" Part Number: N/A Network Rail Reference: 0086/011622 Description: Screwdriver 10"

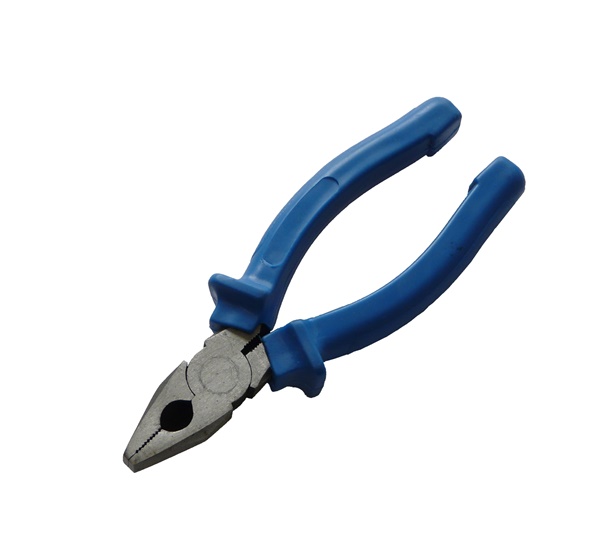

0086/011626 Engineers' pliers 8" Part Number: N/A Network Rail Reference: 0086/011626 Description: Engineers' pliers 8"

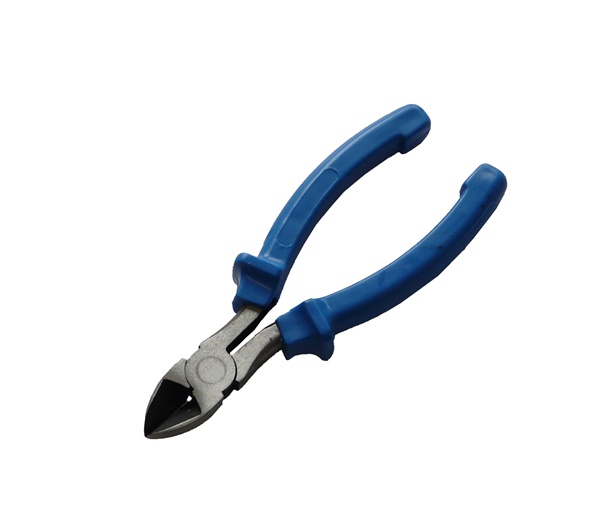

0086/011628 Side cutter 6" Part Number: N/A Network Rail Reference: 0086/011628 Description: Side cutters 6"

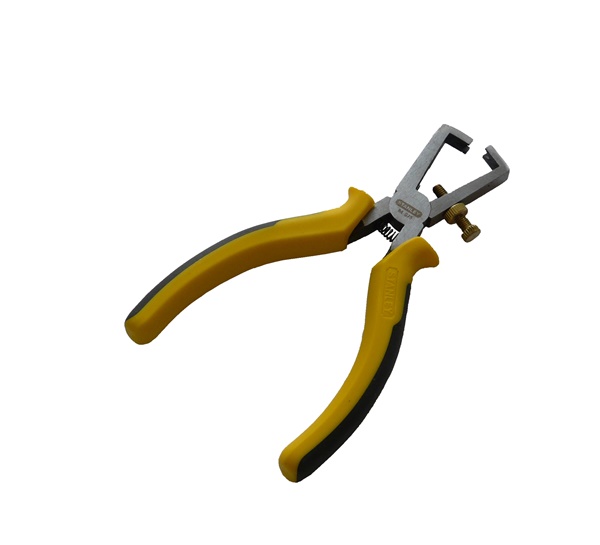

0086/011627 Wire strippers 7" Part Number: N/A Network Rail Reference: 0086/011627 Description: Wire strippers 7"

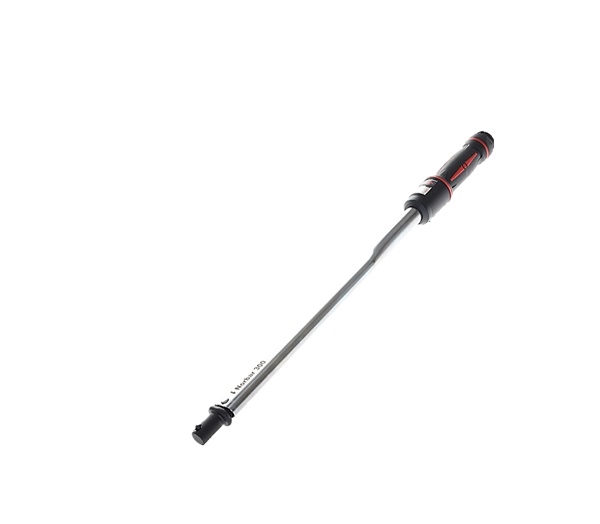

0086/011617 Torque wrench 30-300 Nm Part Number: N/A Network Rail Reference: 0086/011617 Description: Torque wrench 30-300 Nm

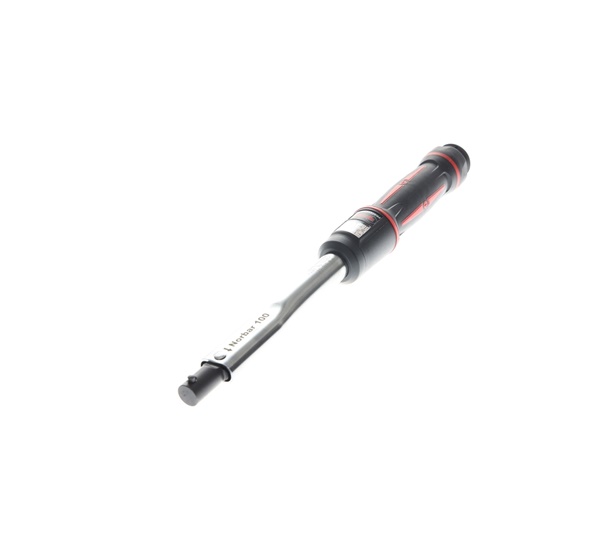

0086/011619 Torque wrench 10-100Nm Part Number: N/A Network Rail Reference: 0086/011619 Description: Torque wrench 10-100Nm

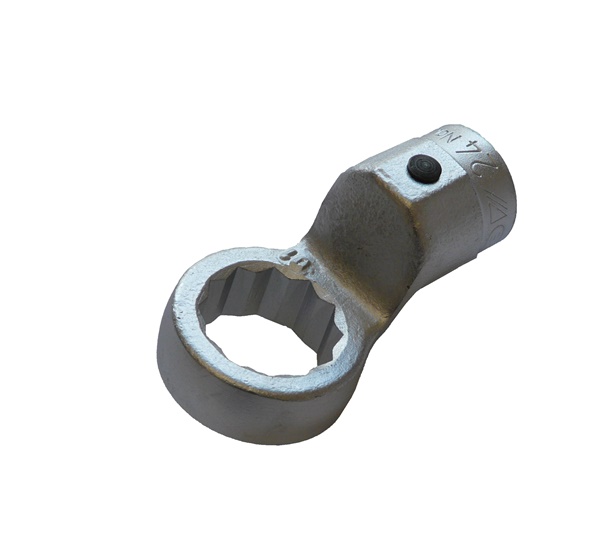

0086/011620 Torque wrench ring fitting 24mm Part Number: N/A Network Rail Reference: 0086/011620 Description: Torque wrench ring fitting 24mm

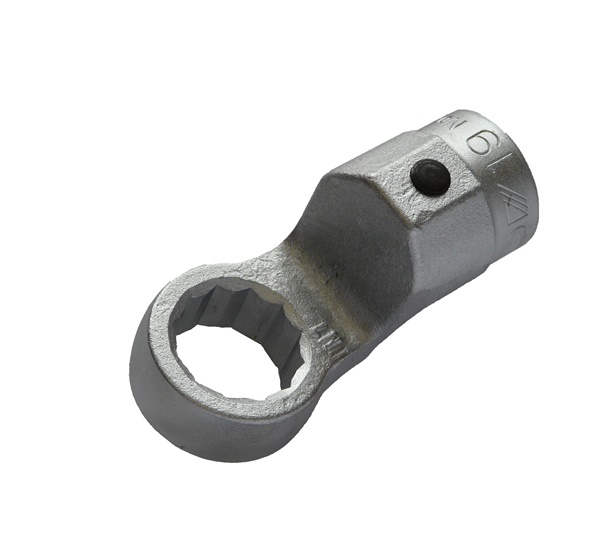

0086/011621 Torque wrench ring fitting 19mm Part Number: N/A Network Rail Reference: 0086/011621 Description: Torque wrench ring fitting 19mm

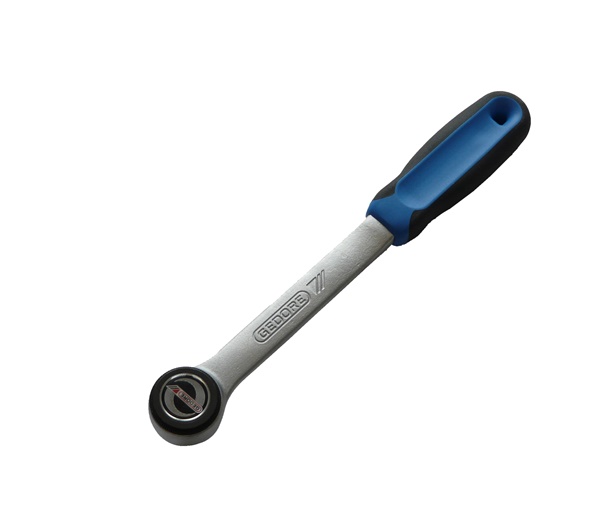

0086/011640 Ratchet reversible 1/2" sq drive Part Number: N/A Network Rail Reference: 0086/011640 Description: Ratchet reversible 1/2" sq drive

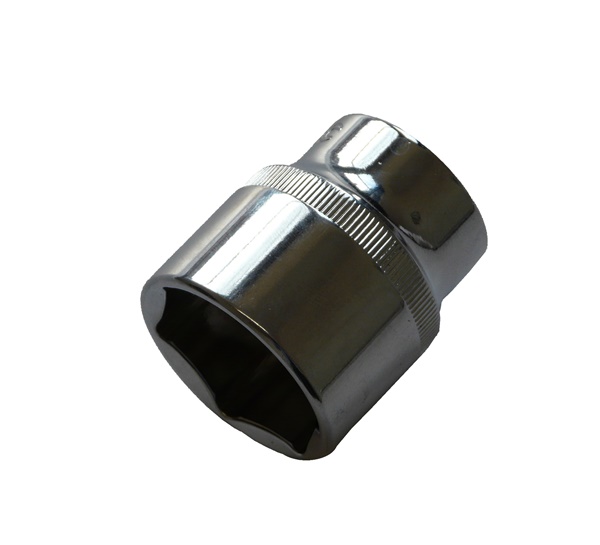

0086/011641 Socket 30mm x 1/2" sq drive Part Number: N/A Network Rail Reference: 0086/011641 Description: Socket 30mm x 1/2" sq drive

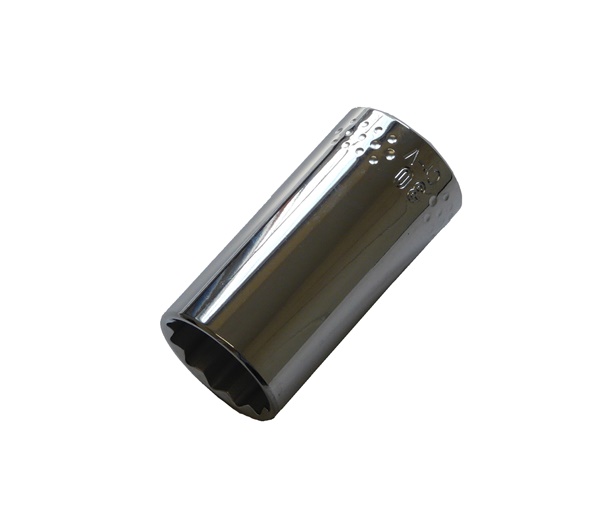

0086/011642 Socket 30mm deep x 1/2" sq drive Part Number: N/A Network Rail Reference: 0086/011642 Description: Socket 30mm deep x 1/2" sq drive

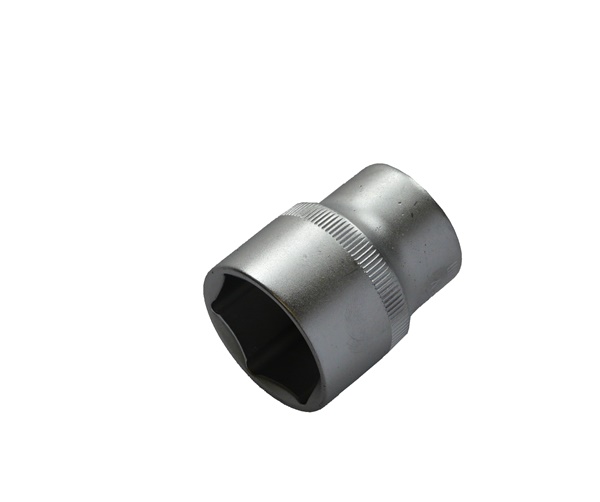

0086/011643 Socket 24mm x 1/2" sq drive Part Number: N/A Network Rail Reference: 0086/011643 Description: Socket 24mm x 1/2" sq drive

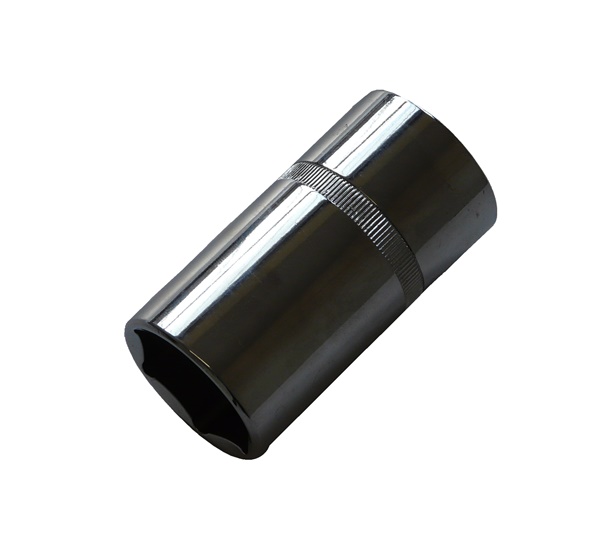

0086/011644 Socket 24mm deep x 1/2" sq drive Part Number: N/A Network Rail Reference: 0086/011644 Description: Socket 24mm deep x 1/2" sq drive

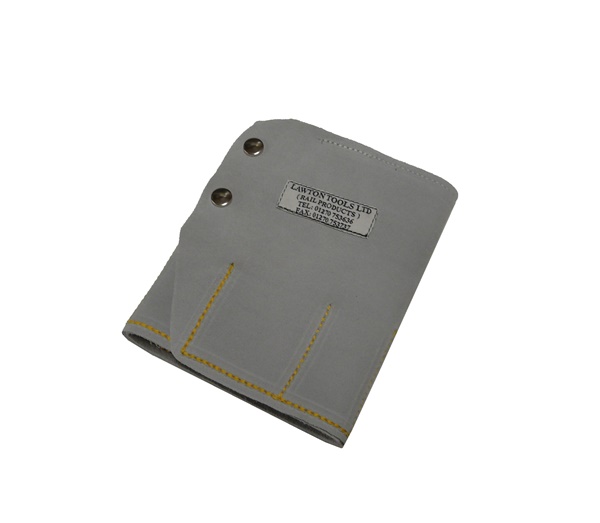

0086/011645 Wallet to hold 10 gauges Part Number: N/A Network Rail Reference: 0086/011645 Description: Wallet, to hold the following 10 gauges:-

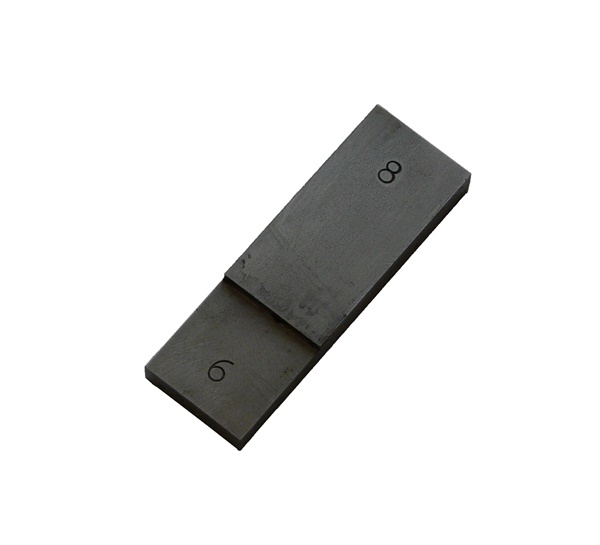

0039/028005 Checking gauge, supplementary detection 6/8mm Part Number: N/A Network Rail Reference: 0039/028005 Description: Gauge, checking, supplementary detection 6/8mm

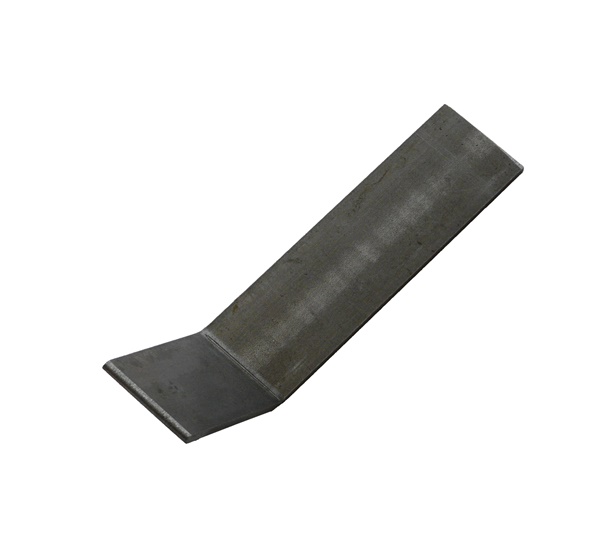

0039/028029 Checking gauge, 3mm lock arm clearance 2 per kit Part Number: N/A Network Rail Reference: 0039/028029 Description: Gauge, checking, 3mm lock arm clearance (2 per kit)

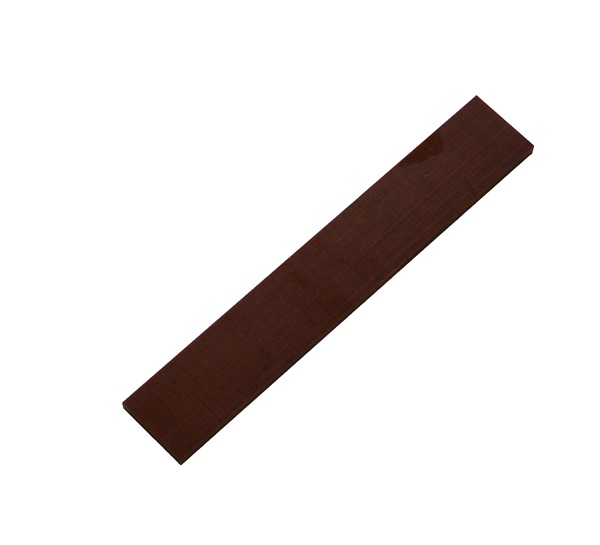

0039/028030 Checking gauge, insulated Part Number: N/A Network Rail Reference: 0039/028030 Description: Gauge, checking, insulated

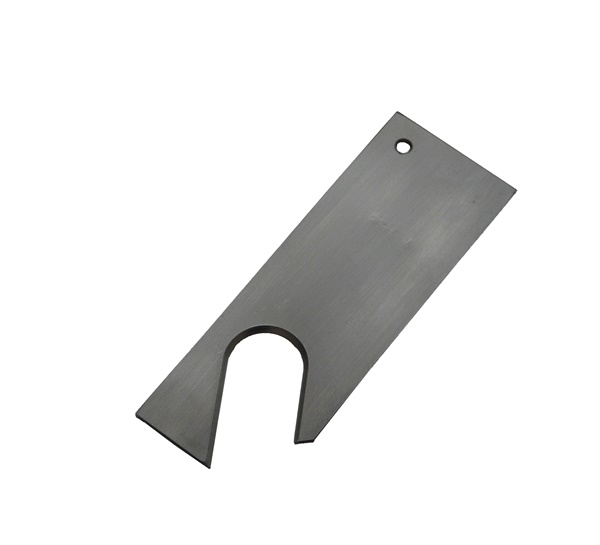

0039/029378 Gauge, detection setting 2.5mm Part Number: N/A Network Rail Reference: 0039/029378 Description: Gauge, detection setting 2.5mm

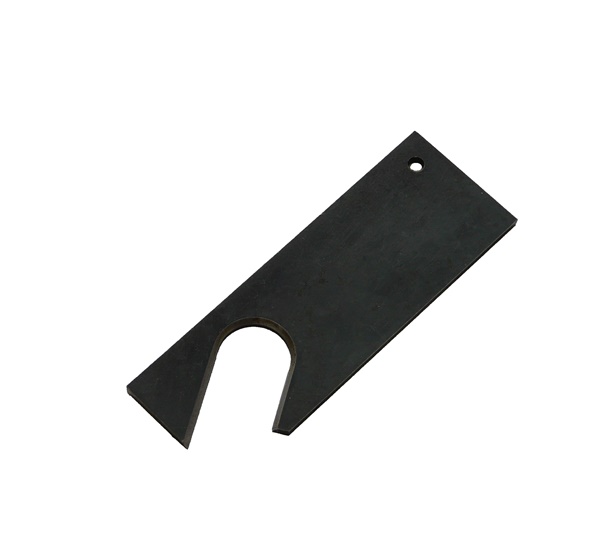

0039/029379 Gauge, detection setting 4.0mm Part Number: N/A Network Rail Reference: 0039/029379 Description: Gauge, detection setting 4.0mm

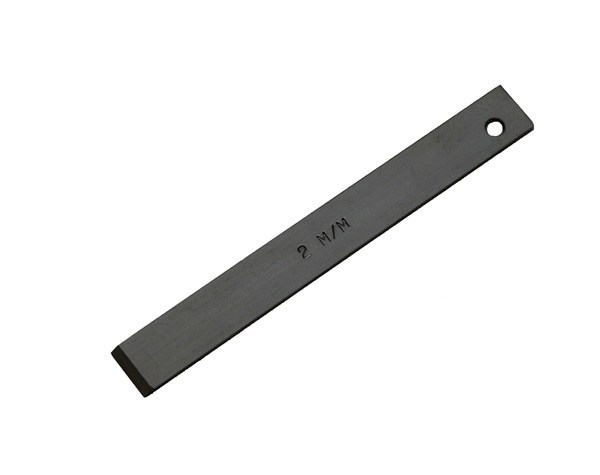

0039/029382 Gauge, limit switch setting 2.0mm Part Number: N/A Network Rail Reference: 0039/029382 Description: Gauge, limit switch setting 2.0mm

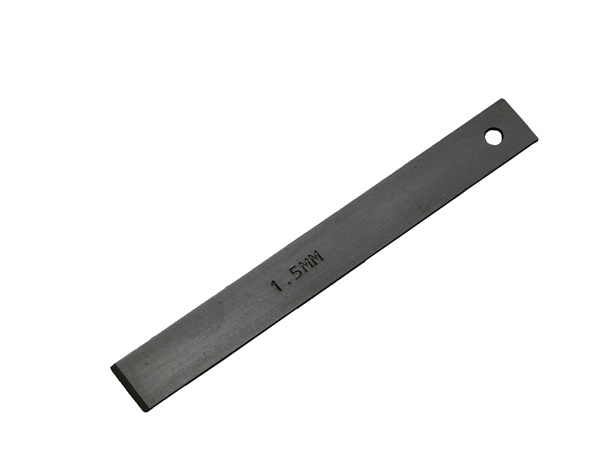

0039/029383 Gauge, limit switch setting 1.5mm (2 per kit) Part Number: N/A Network Rail Reference: 0039/029383 Description: Gauge, limit switch setting 1.5mm (2 per kit)

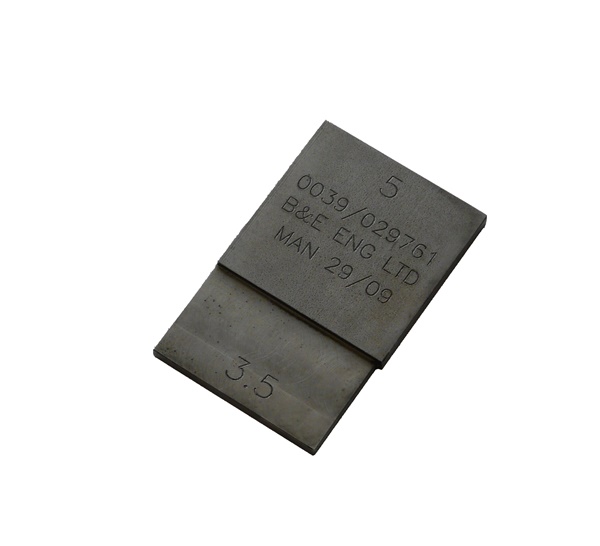

0039/029761 Gauge, point checking metric Part Number: N/A Network Rail Reference: 0039/029761 Description: Gauge, point checking metric

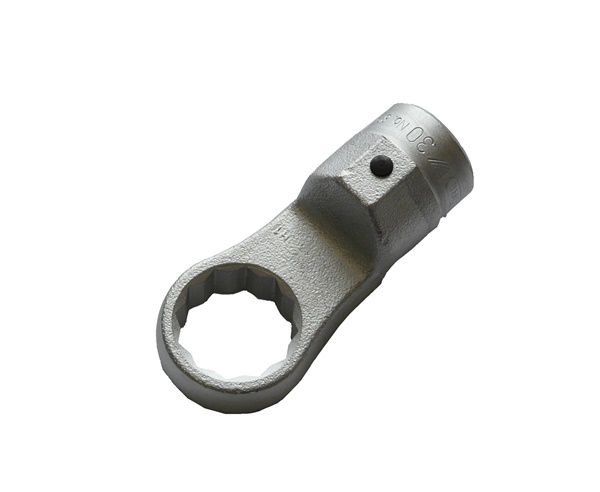

LT/TK/01/45 Torque wrench ring fitting 30mm Part Number: LT/TK/01/45 Network Rail Reference: N/A Description: Torque wrench ring fitting 30mm

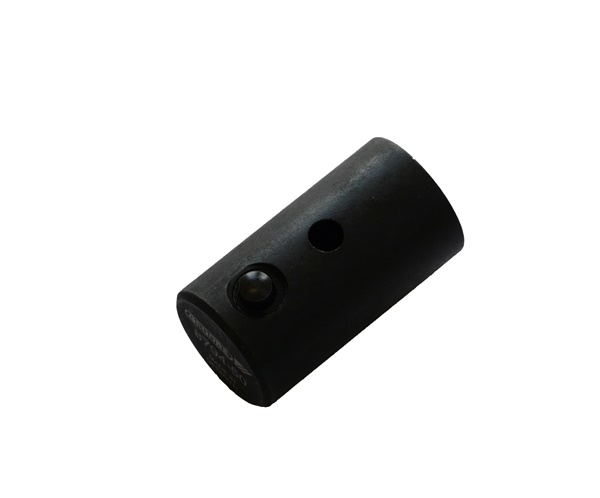

LT/TK/01/46 Torque wrench ring fitting adaptor Part Number: LT/TK/01/46 Network Rail Reference: N/A Description: Torque wrench ring fitting adaptor

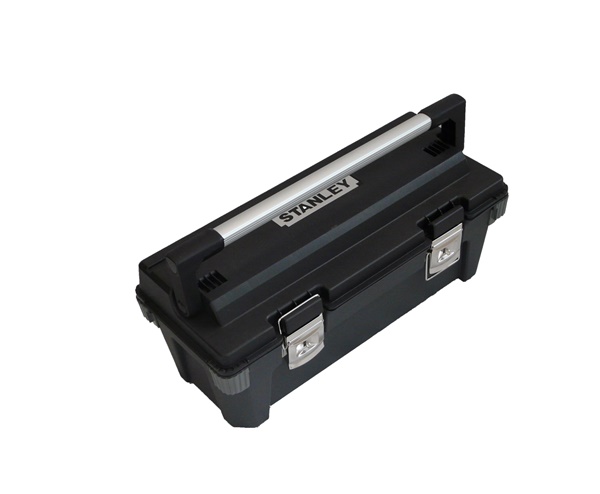

LT/TK/01/47 Toolbox Part Number: LT/TK/01/47 Network Rail Reference: N/A Description: Toolbox

Included in the kit:

  • Crimping pliers for terminations on lock bodies and power packs.
  • Hand pump lever to manually open and close the switch.
  • Gauge set for checking supplementary detection, lock arm clearances, limit switch position etc.
  • Hydraulic pressure gauge to monitor / verify the operating pressure of electro hydraulic operating system.
  • Selection of wrenches, pliers, sockets and torque wrenches.  Please see Kit Contents for full details.
