Product Information
Broken dropper wires, conductor cables and overhanging vegetation are a potential risk to personnel, the infrastructure and rail traffic, all of which can cause severe delays on the network. This fully portable kit was developed on behalf of Network Rail to quickly remove failed wires, broken or vandalised conductors, foliage or obstructions quickly to minimise delays, either in an emergency or as part of the general maintenance programme; for example controlling vegetation.
The kit is designed to cut dropper wires, including MK3B solid stainless steel and solid copper 20mm diameter, braided copper dropper wires or stranded type conductors up to 32mm diameter and vegetation up to 50mm diameter.
- Fully portable
- Easy and quick to use
- Hydraulically powered cutting heads

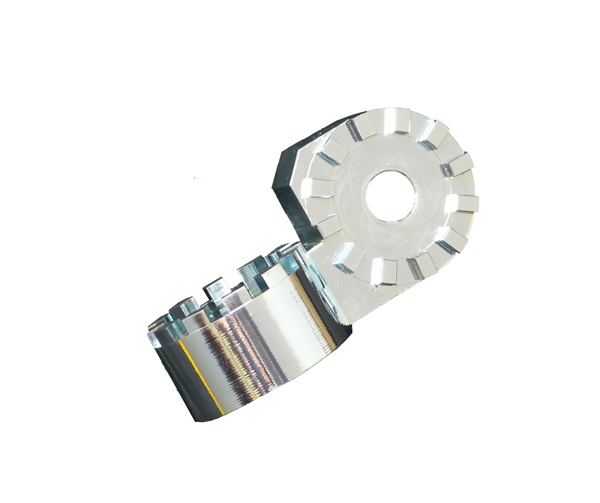

- Interchangeable cutting heads for dropper wires, conductors and vegetation

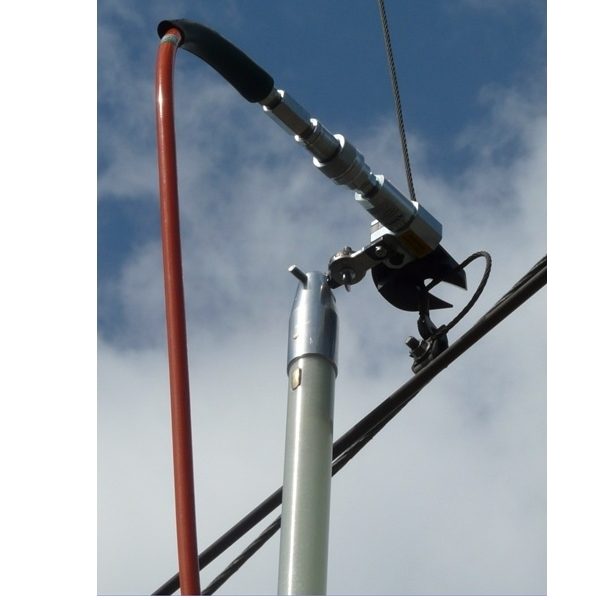

- Cutting heads attach to standard issue Network Rail non-conductive poles
- Multiple angle adjustment in both horizontal and vertical planes
- Supplied with non-conductive hoses, tested to 75Kv per foot
- Hoses and pump supplied filled with non- conductive biodegradable hydraulic oil
- Standard hydraulic screw type couplers, no tools required
- Utilises Li-Ion battery packs preventing power discharge issues during storage
- Battery management – illuminated display of battery charge levels, (charged levels can be quickly assessed before use /travelling to site), spare battery provided, battery recharge time (from fully depleted) = 22 minutes
For the full specification please refer to the data sheet.
