Punch and Guide for Fixed Type Stretcher Bar Installation

Punch and punch guidePunch and punch guide

Product Information

Used for marking the stretcher bar mounting bracket hole position when installing fixed type stretcher bars.  Recently updated for use with both new ‘yellow’ and old ‘black’ type fixed stretcher bars.

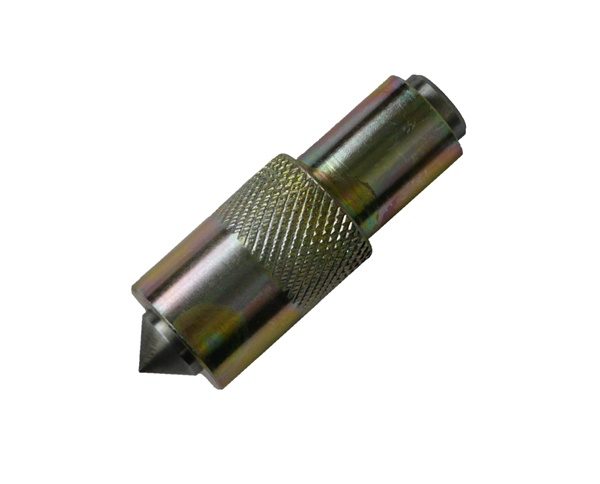

The punch guide is inserted into the mounting bracket hole ensuring that the punch, when struck with a hammer, marks the hole centre position.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Network Rail Reference Description

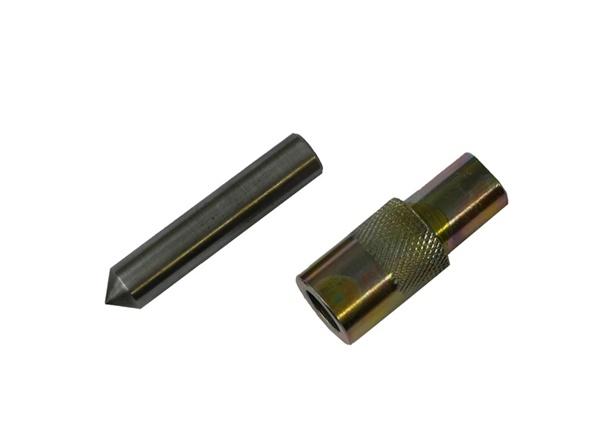

Punch and punch guide Network Rail Reference: 0086/076142 Description: Punch guide
Punch and punch guide Network Rail Reference: 0086/076141 Description: Punch
  • Revised guide outer diameter of 20.3mm enables use on both new ‘yellow’ and old ‘black’ type fixed stretcher bars.
  • Zinc and gold passivate finish of the guide ensures that the new revised type is easily distinguishable from the previous version.
