Torque Wrench 1″ Square Drive

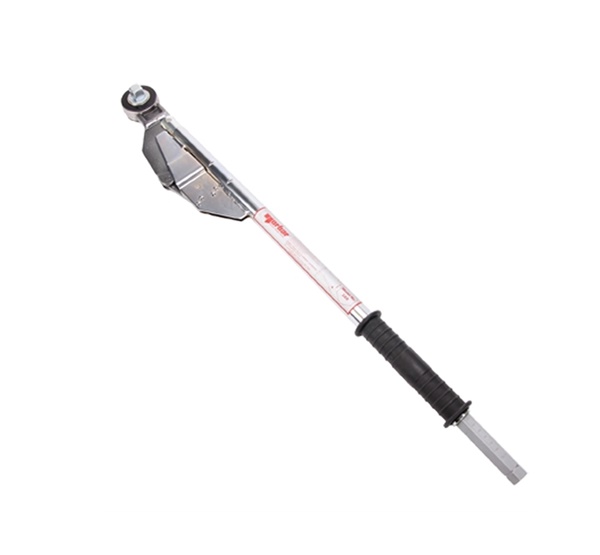

BH00/046972 Torque wrench 1" square drive 100-500Nm 70-350lbf.ftBH00/046972 Torque wrench 1" square drive 100-500Nm 70-350lbf.ft

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Network Rail Reference Description Features
BH00/046972 Torque wrench 1" square drive 100-500Nm 70-350lbf.ft Network Rail Reference: BH00/046972 Description: Torque wrench 1" sq dr
100-500Nm 70-350lbf.ft
Features: • Norbar adjustable 'break back' action torque wrench model 3AR
• The break angle improves accuracy by reducing the possibility of over torqueing
• Push through ratchet
• Accuracy +/- 4%
• Length 910mm
• Complies with ISO 6789
• Note: scale increments Nm = 10.0, lbf.ft = 10.0
• Weight 5.2Kgs

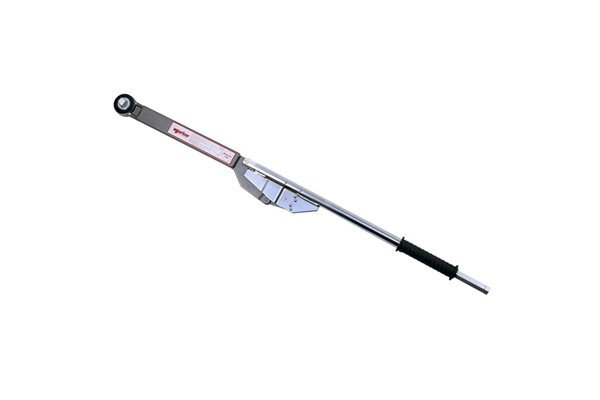

BH00/046973 Torque wrench 1" square drive 200-800Nm 150-600lbf.ft Network Rail Reference: BH00/046973 Description: Torque wrench 1" sq dr
200-800Nm 150-600lbf.ft
Features: • Norbar adjustable 'break back' action torque wrench model 4AR
• The break angle improves accuracy by reducing the possibility of over torqueing
• Push through ratchet
• Accuracy +/- 4%
• Length 1250mm
• Complies with ISO 6789
• Note: scale increments Nm = 10.0, lbf.ft = 10.0
• Weight 6.4Kgs

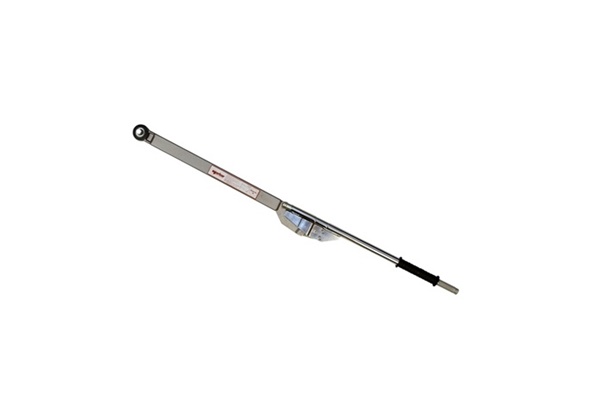

BH00/046974 Torque wrench 1" square drive 300-1000Nm 200-750lbf.ft Network Rail Reference: BH00/046974 Description: Torque wrench 1" sq dr
300-1000Nm 200-750lbf.ft
Features: • Norbar adjustable 'break back' action torque wrench model 5R
• The break angle improves accuracy by reducing the possibility of over torqueing
• Push through ratchet
• Accuracy +/- 4%
• Length 1475mm
• Complies with ISO 6789
• Note: scale increments Nm = 20.0, lbf.ft = 10.0
• Weight 7.3 Kgs

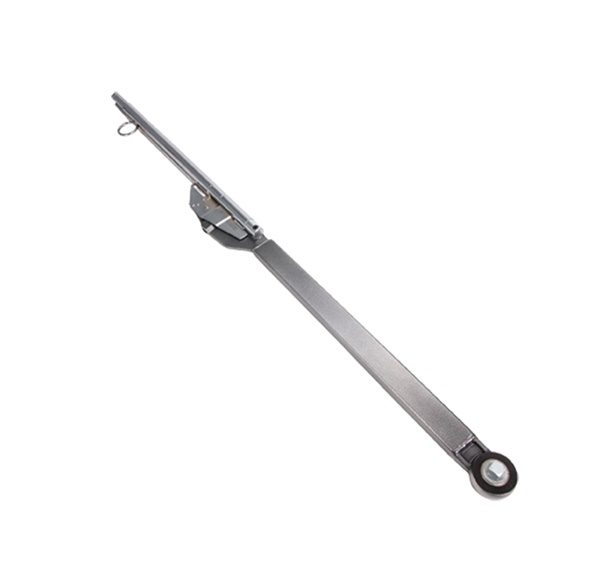

BH00/046975 Torque wrench 1" square drive 700-1500Nm 500-1000lbf.ft Network Rail Reference: BH00/046975 Description: Torque wrench 1" sq dr
700-1500Nm 500-1000lbf.ft
Features: • Norbar adjustable 'break back' action torque wrench model 5AR
• The break angle improves accuracy by reducing the possibility of over torqueing
• Push through ratchet
• Accuracy +/- 4%
• Length 1475mm
• Complies with ISO 6789
• Note: scale increments Nm = 25.0, lbf.ft = 20.0
• Weight 10.4 Kgs

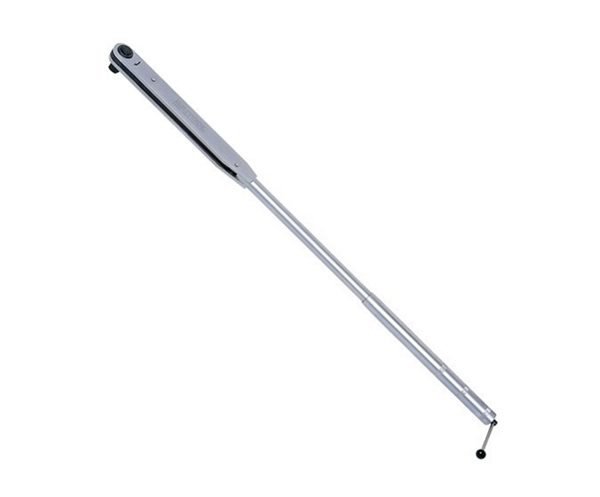

BH00/046958 Torque wrench 1" square drive 480-940Nm Network Rail Reference: BH00/046958 Description: Torque wrench 1" sq dr
480-940Nm
Features: • Britool 'Classic' torque wrench
• Retractable adjusting mechanism avoids accidental adjustment
• Push through drive
• Accuracy +/- 4%
• Length 1397mm
• Complies with ISO 6789
• Note: scale increments Nm = 20.0Nm
