Product Information

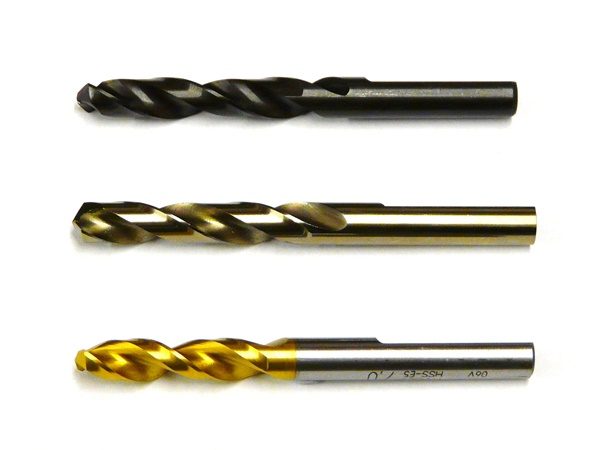

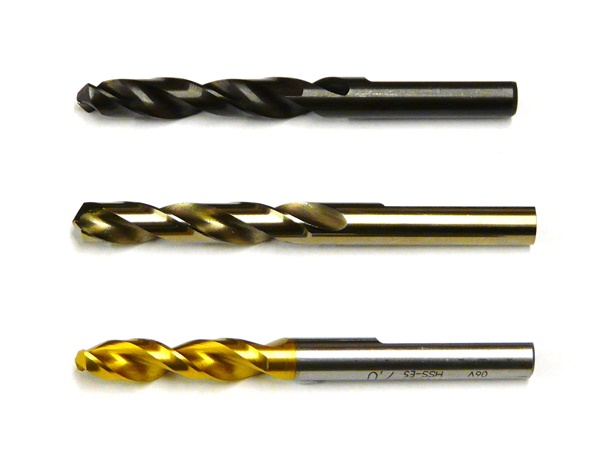

Lawton Tools have been supplying high quality Track Bond Drills for many years. Three different types are supplied; high speed steel suitable for most standard rail sections, high speed steel with cobalt where longer drill life is required and an extra heavy duty version which is titanium nitride coated for greater durability. Two of the drills have a modified point angle for easier drilling in very hard materials for example manganese rail sections.
| Thumbnail | Part Number | Network Rail Reference | Description | |
|---|---|---|---|---|
|
Part Number: N/A | Network Rail Reference: 0039/011640 | Description: Standard duty 9/32" high speed steel drill | |
|
Part Number: N/A | Network Rail Reference: 0039/012136 | Description: Heavy duty 9/32" high speed steel/cobalt drill with modified point angle | |
|
Part Number: LT/TB/103 | Network Rail Reference: N/A | Description: Extra heavy duty 7mm (equivalent to 9/32") high speed steel drill with 8% cobalt, titanium nitride coating and modified point angle |

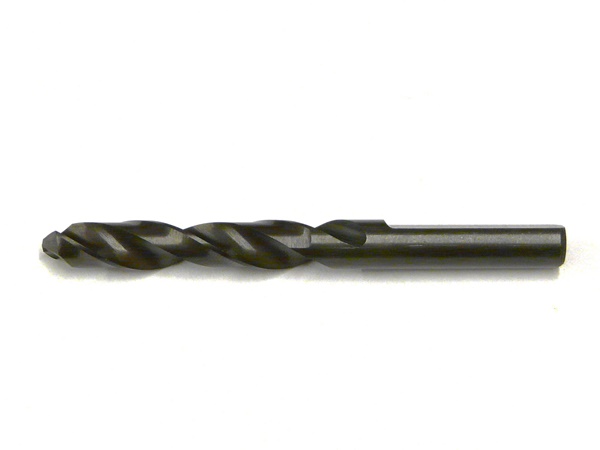

Standard Duty Part No. 0039/011640
Colour : Blue/Black
9/32” Ø High Speed Steel Drill
Recommended for general track bond drilling on most types of rail.

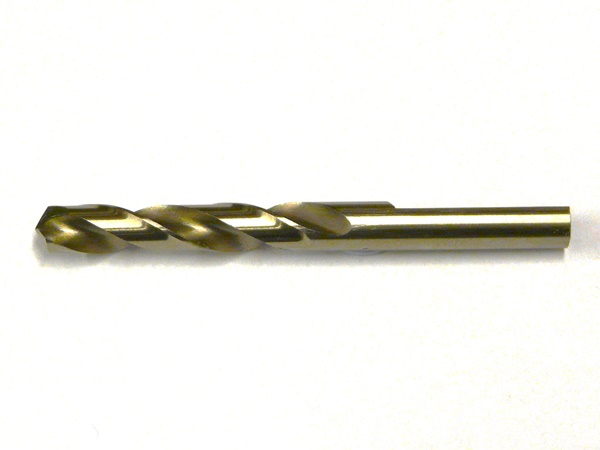

Heavy Duty Part.No. 0039/012136
Colour : Straw
9/32” Ø High Speed Steel / Cobalt Drill with modified point angle.
Recommended for track bond drilling on MHT, manganese and corroded rail.

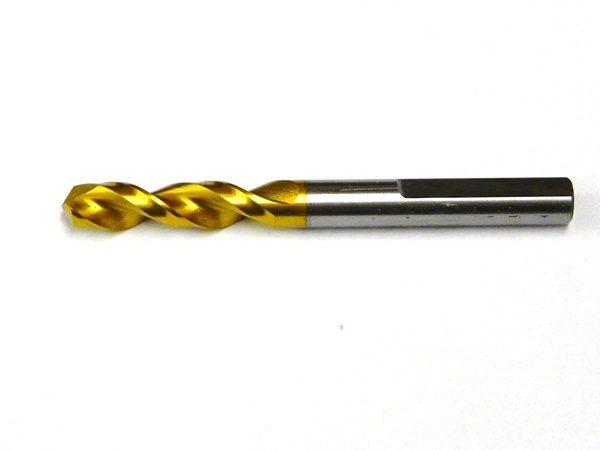

Extra Heavy Duty Part No. LT/TB/103
Colour : Silver and Gold
7mm Ø (9/32″) High Speed Steel Drill with 8% cobalt, Titanium Nitride coating and modified point angle.
Recommended for drilling applications which are particularly problematic.
All drills are 3″ long and have a cylindrical shank with a 1″ flat, which is compatible with most makes of rail drilling machines. All drills are supplied with guidelines on drill selection, feeds and speeds etc.. Our sales staff can advise on drill selection prior to ordering.
