Tubular Stretcher Bar Tool Kit

0057/073251 Tubular stretcher bar tool kit0057/073251 Tubular stretcher bar tool kit

Product Information

Developed with Network Rail to facilitate the installation and maintenance of tubular stretcher bars.  The kit provides attachments to enable S&T teams to both use existing torque wrenches yet achieve the required torque values including those teams working in live line area using insulated torque wrenches.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Part Number Network Rail Reference Description
0057/073251 Tubular stretcher bar tool kit Part Number: N/A Network Rail Reference: 0057/073251 Description: Tubular stretcher bar tool kit
Part Number: Comprises:
0094/008037 Insulated breaker bar 600mm long x 22mm dia. spigot Part Number: N/A Network Rail Reference: 0094/008037 Description: Insulated breaker bar 600mm long x 22mm dia. spigot
Manufactured and tested to BS8020:2011

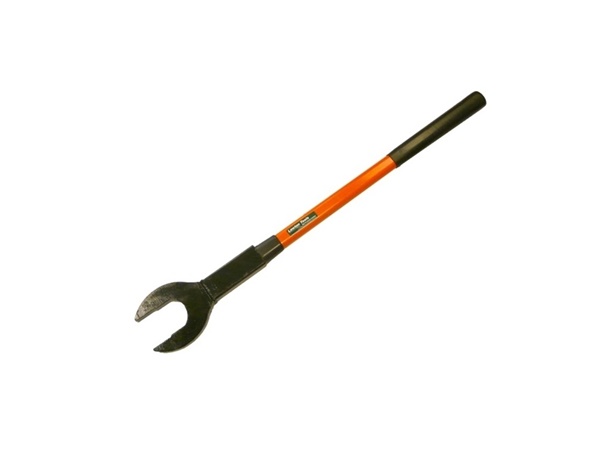

0057/073252 Insulated 60/65mm spanner Part Number: LT/TK/23B Network Rail Reference: 0057/073252 Description: Insulated 60/65mm spanner
Manufactured and tested to BS8020:2011

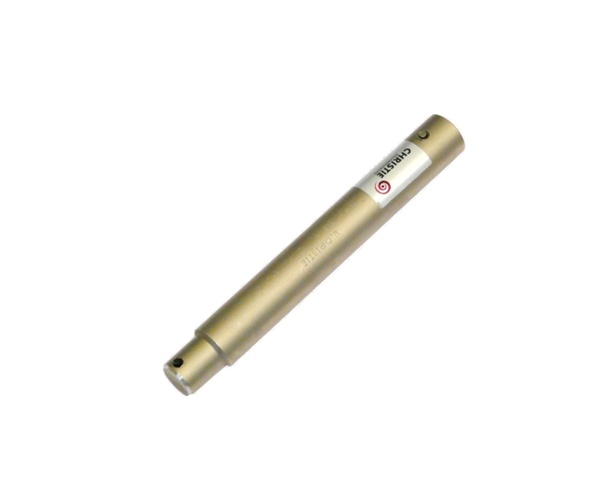

0057/073253 Torque wrench / breaker bar extension piece (22mm female to 28mm male Part Number: LT/TK/23C Network Rail Reference: 0057/073253 Description: Torque wrench/breaker bar extension piece (22mm female to 28mm male)
For the torque loading of fasteners the extension piece is engraved
input 340Nm, output 440Nm

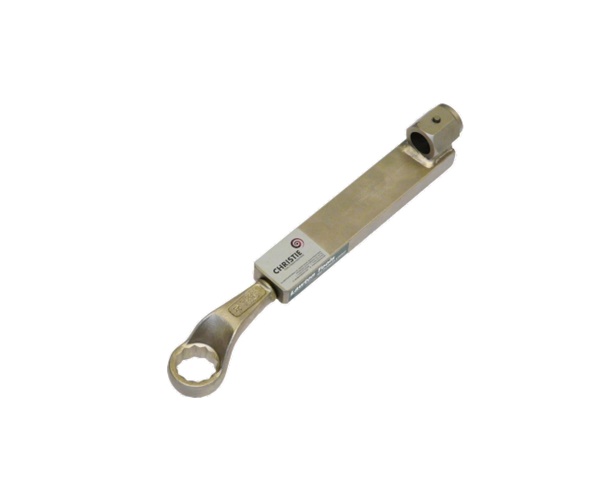

0057/073254 30mm ring-ended fitting. For the torque loading of fasteners the fitting is engraved input 340Nm, output 440Nm Part Number: LT/TK/23D Network Rail Reference: 0057/073254 Description: 30mm ring-ended fitting
For the torque loading of fasteners the fitting is engraved
input 340Nm, output 440Nm

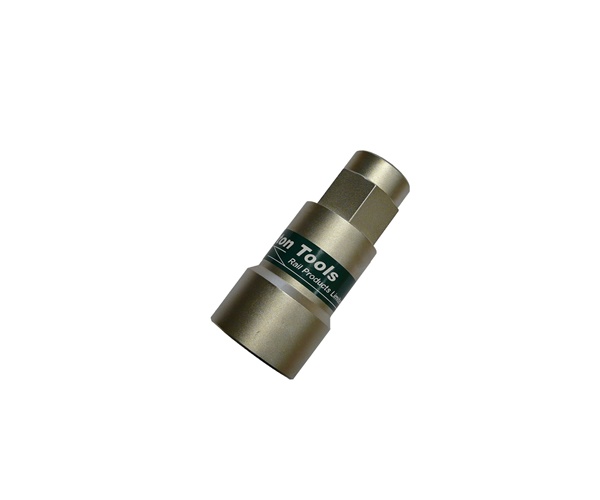

0057/073258 30mm socket adaptor (required for foot mounted motion units) Part Number: LT/TK/23G Network Rail Reference: 0057/073258 Description: 30mm socket adaptor (required for foot mounted motion units)

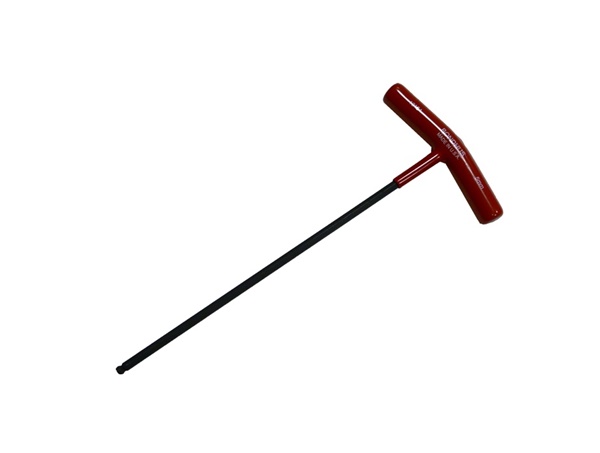

0057/073255 5mm T handled, long reach, ball ended, hexagon key Part Number: LT/TK/23E Network Rail Reference: 0057/073255 Description: 5mm T handled, long reach, ball ended, hexagon key

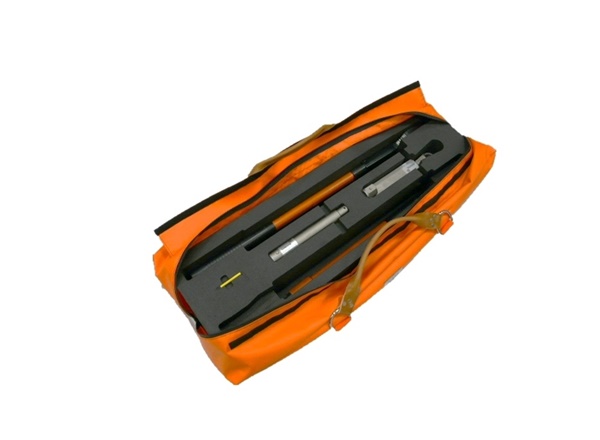

0057/073256 Storage bag with foam insert Part Number: LT/TK/23F Network Rail Reference: 0057/073256 Description: Storage bag with foam insert

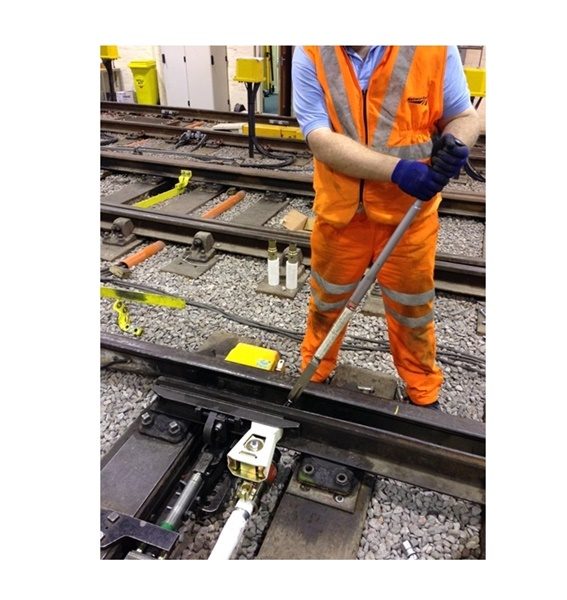

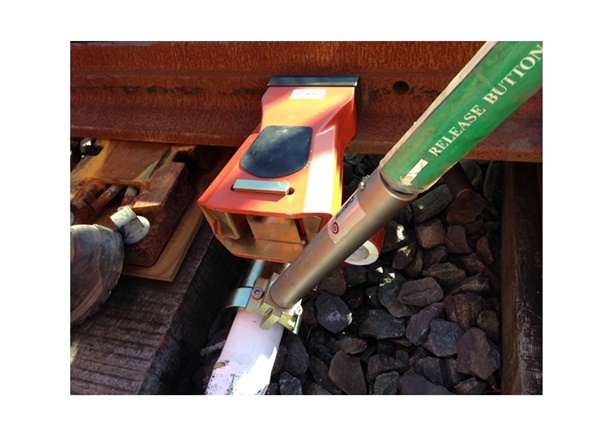

  • End fittings enable torque to be applied to all M20 mounting bolts and to the tubular stretcher bar locking ring
  • Includes socket adaptor for tightening foot mounted motion units
  • Breaker bar included for loosening M20 bolts and locking ring

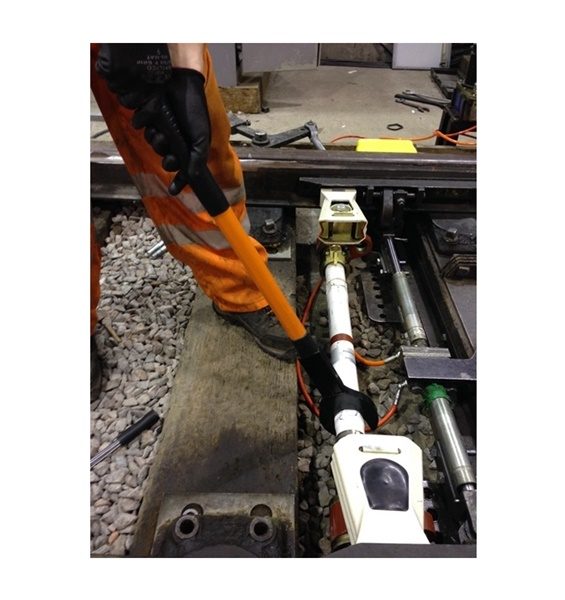

  • Kit includes combined 60/65mm open end spanner for rotating the stretcher bar
  • Breaker bar and combined 60/65mm open ended spanner are insulated for those teams working in live line areas
