Welders’ / Weld Inspectors’ 1 metre Straight Edge

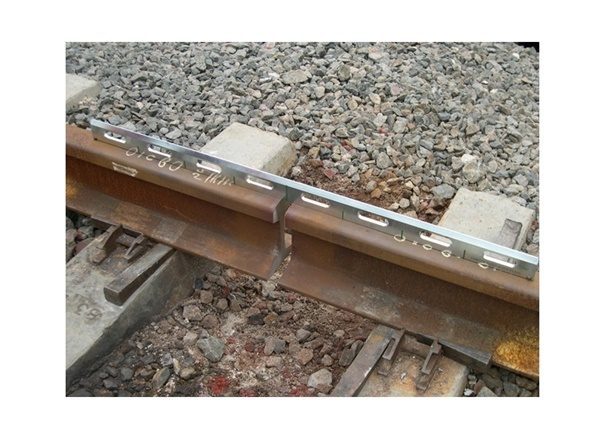

Checking the alignment of the head of the rail sectionsChecking the alignment of the head of the rail sections

Product Information

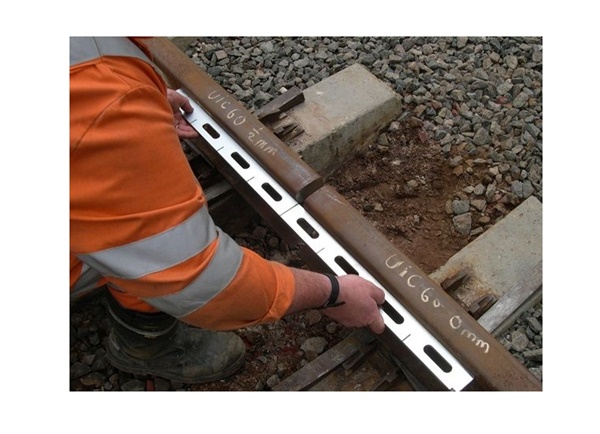

Used by both welders and weld inspectors for checking the alignment of rail sections, either prior to or after the welding/grinding processes.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Part Number Network Rail Reference Description
0046/035302 Welders' 1 metre straight edge Part Number: N/A Network Rail Reference: 0046/035302 Description: Welders' 1 metre straight edge

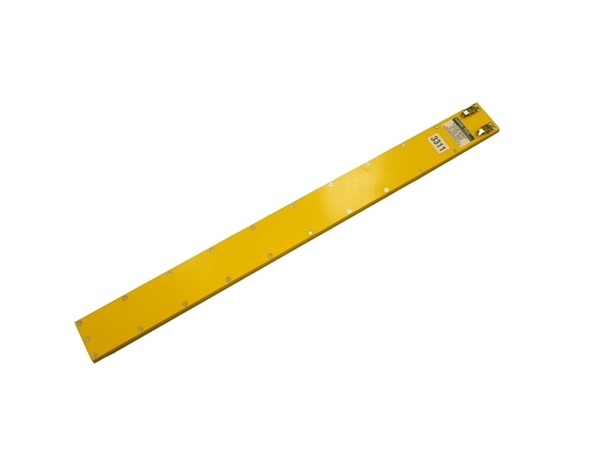

URLT/004258 Replacement yellow polyethylene storage box Part Number: LT/RG/20B Network Rail Reference: URLT/004258 Description: Replacement yellow polyethylene storage box
  • Nib height = 1.5mm +/- 0.05
  • Nibbed edge and bevelled edge
  • Dimensions: 1016mm long x 50.0mm high x 8.0mm thick
  • 7 engraved check positions
  • Individual serial number for asset tracking / periodic calibration recording
  • Zinc coated for corrosion protection
  • Supplied with certificate of conformity
  • Supplied in a yellow polyethylene protective storage box
  • Weight = 2.35Kgs (without box)
  • Weight = 3.95Kgs (with box)

Replacement storage boxes can be ordered separately.  Weight = 1.60Kgs

Note: 4 nibbed version available for dipped and battered joints, see part number 0039/025024
