Product Information

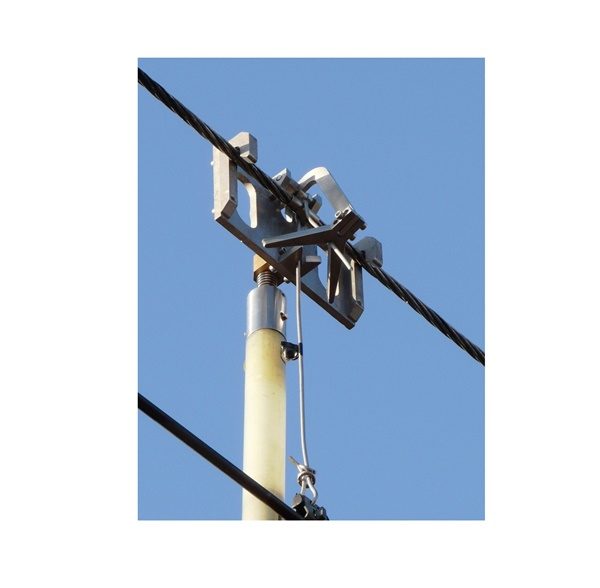

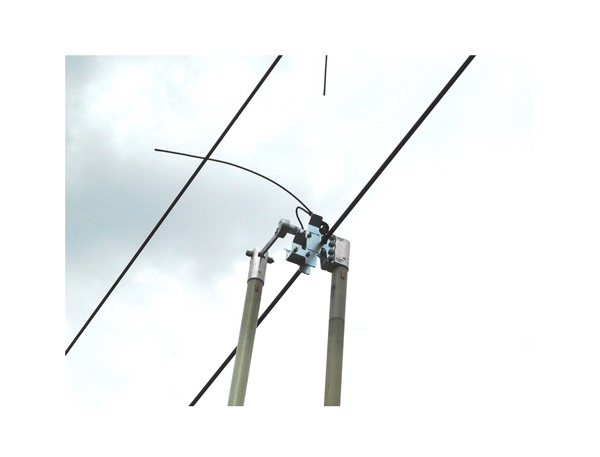

This equipment is used for the installation and removal of OLE stainless steel cam type and flexible copper droppers using standard insulated pole sets.
Originally developed by GW Engineering, the kit is now produced by Lawton Tools. The kit contents have also been extended to enable the removal of Arthur Flury type bolted droppers. Part of the solution for removing bolted droppers is based on original design ideas from Davey Smith and his team at Network Rail Morpeth.
| Thumbnail | Network Rail Reference | Description | |
|---|---|---|---|
|

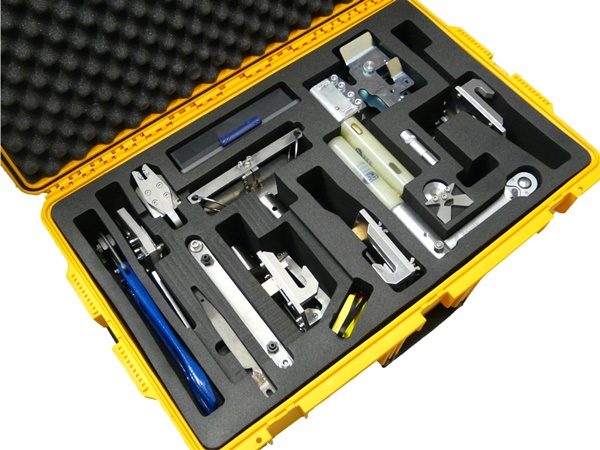

Network Rail Reference: 0039/127053 | Description: Combined live line and bolted dropper removal and installation kit | |
| Network Rail Reference: Comprises: | |||
|

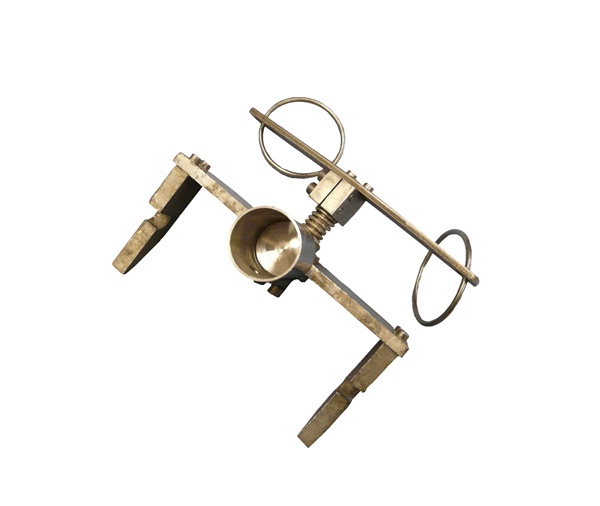

Network Rail Reference: 0039/127054 | Description: Dropper clip removal tool | |
|

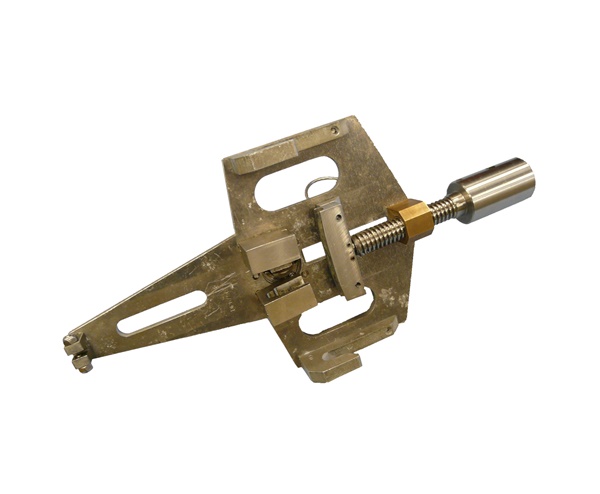

Network Rail Reference: 0039/127055 | Description: Dropper clip installation tool | |
|

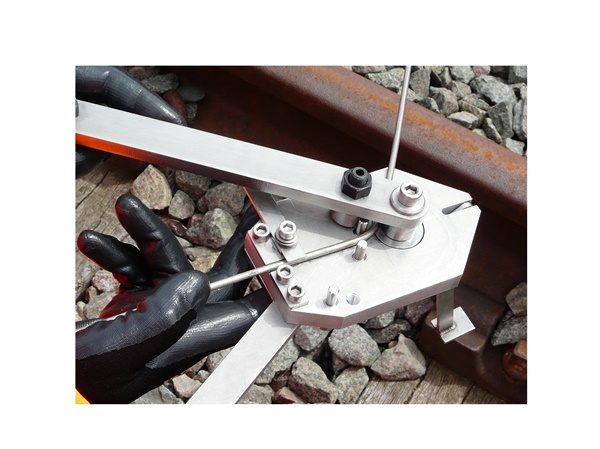

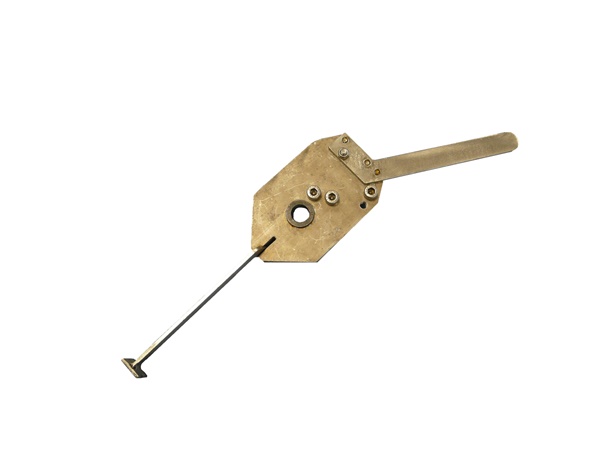

Network Rail Reference: 0039/127056 | Description: Dropper wire forming tool (part A) | |
|

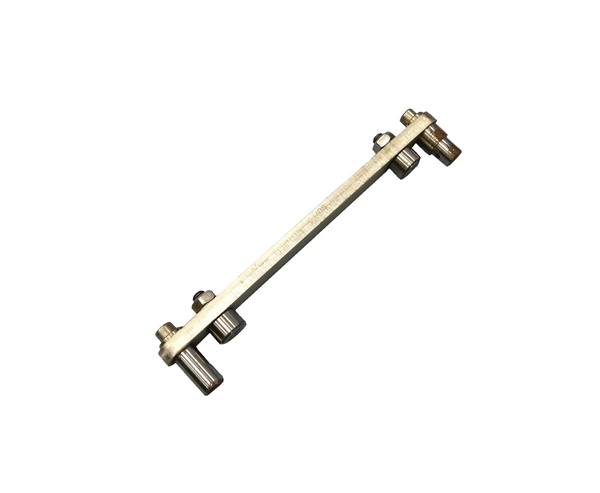

Network Rail Reference: 0039/127057 | Description: Dropper wire forming tool (part B) | |
|

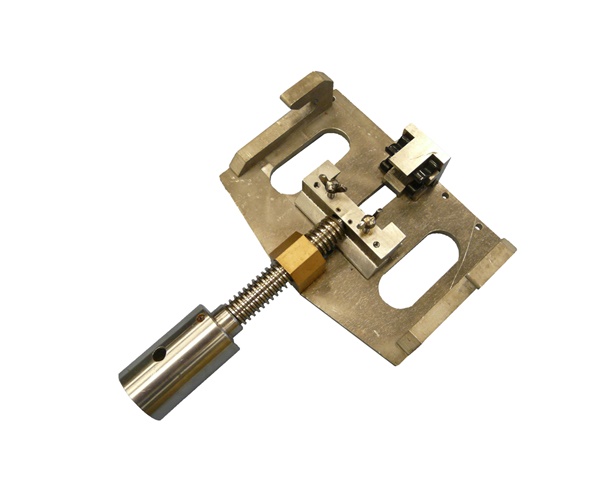

Network Rail Reference: 0039/127058 | Description: Spring saddle clip installation tool | |
|

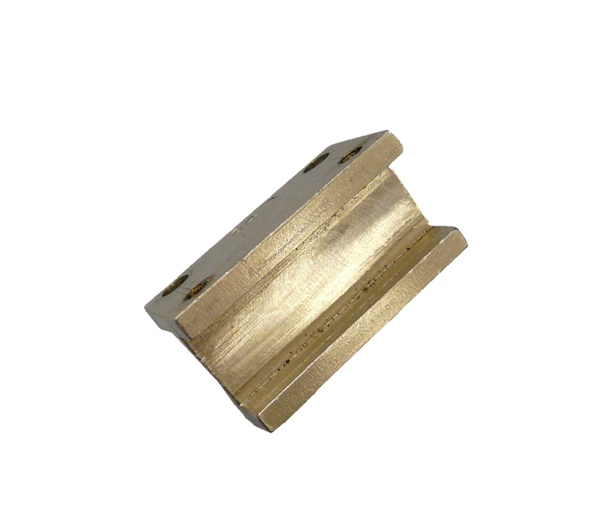

Network Rail Reference: 0039/127059 | Description: Spring saddle clip releasing block used in conjunction with 0039/127058 | |
|

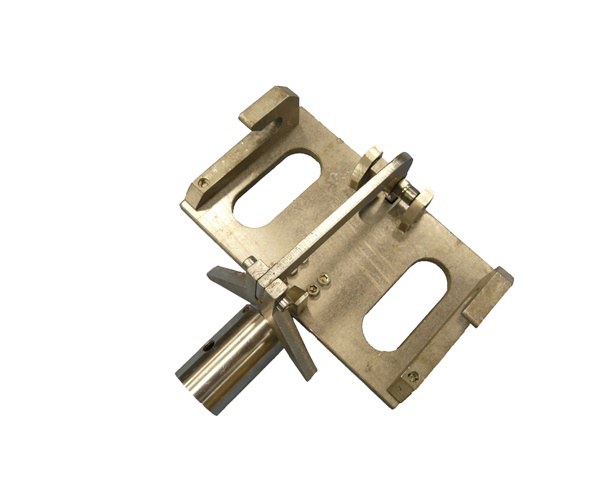

Network Rail Reference: 0039/127060 | Description: Dropper ring installation tool | |
|

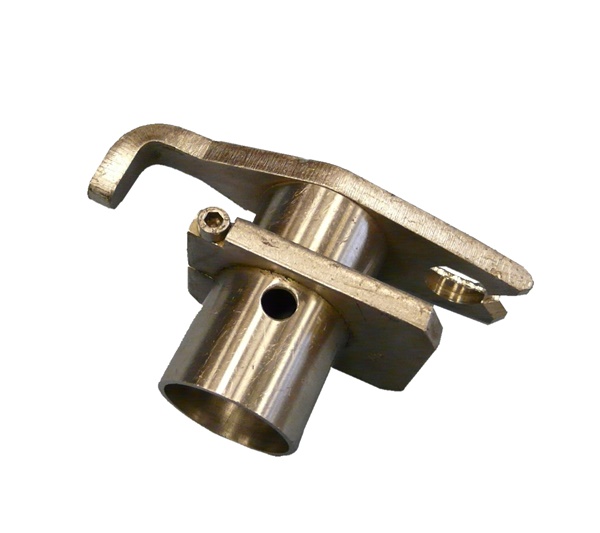

Network Rail Reference: 0039/127061 | Description: Hook/dropper wire ring push tool | |
|

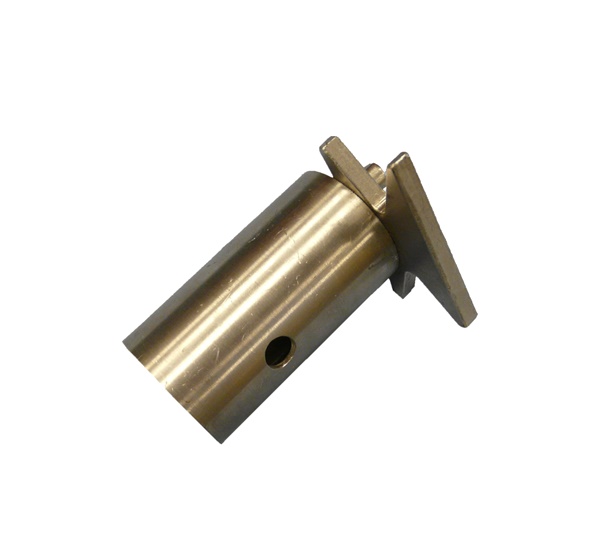

Network Rail Reference: 0039/127062 | Description: Dropper spreading tool | |
|

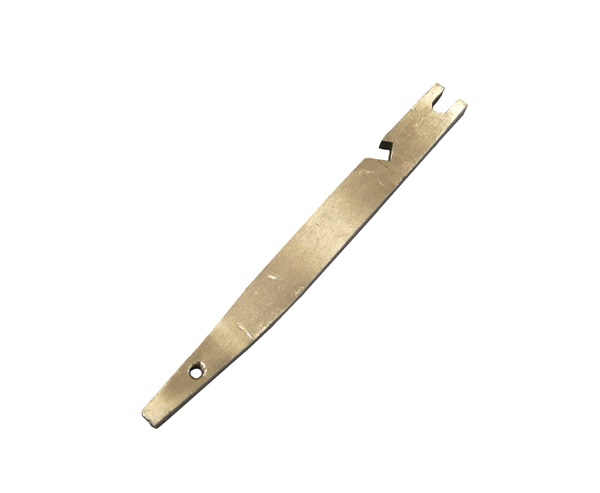

Network Rail Reference: 0039/127063 | Description: Dropper key | |
|

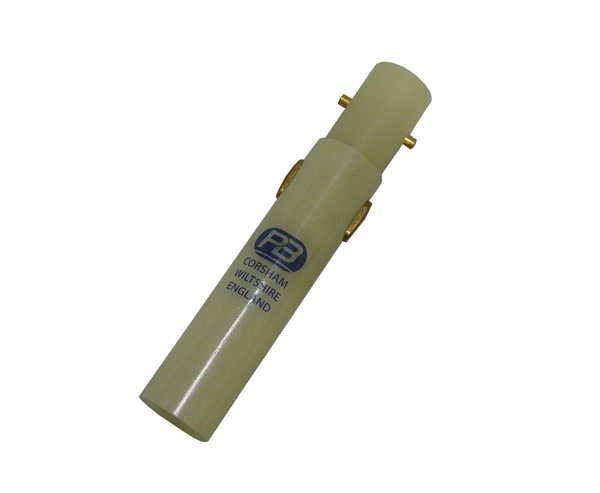

Network Rail Reference: 0039/127064 | Description: Intermediate to top non-conductive pole adaptors x 2 | |
|

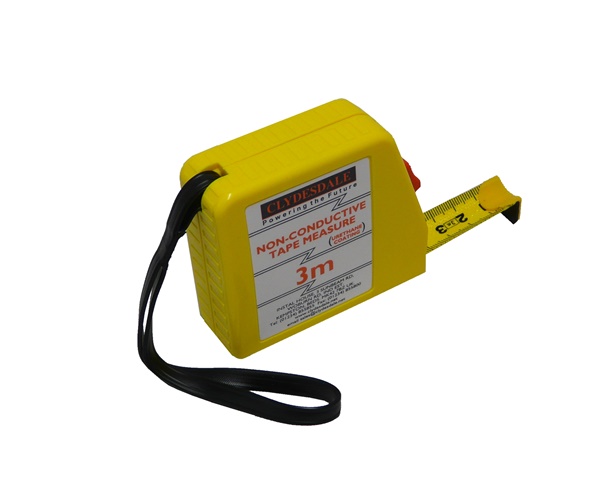

Network Rail Reference: 0039/127065 | Description: Non-conductive tape measure 3 metres | |
|

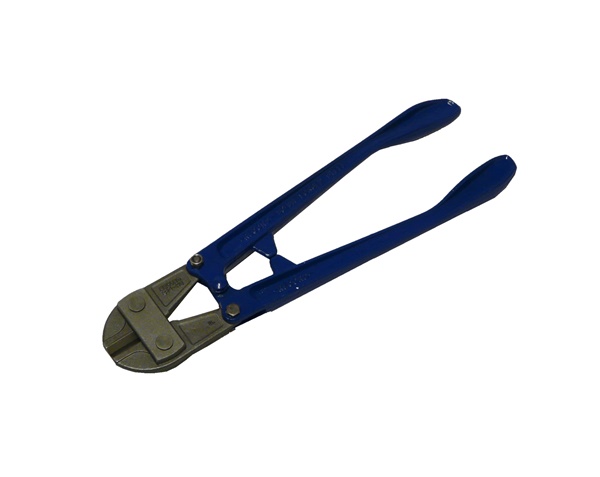

Network Rail Reference: 0039/127066 | Description: 14” centre cut high tensile bolt croppers | |
|

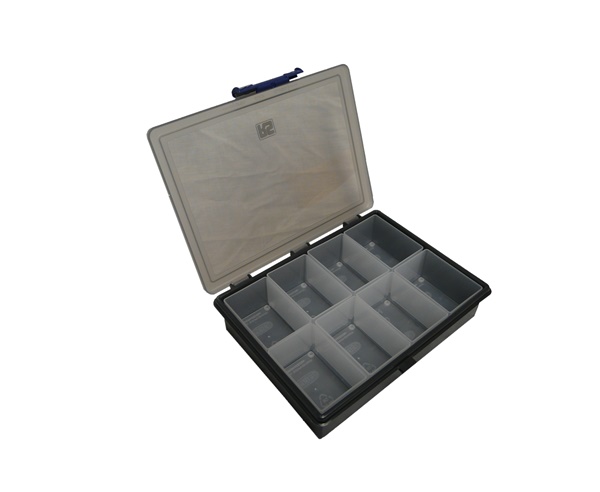

Network Rail Reference: 0039/127067 | Description: Small components storage box | |
|

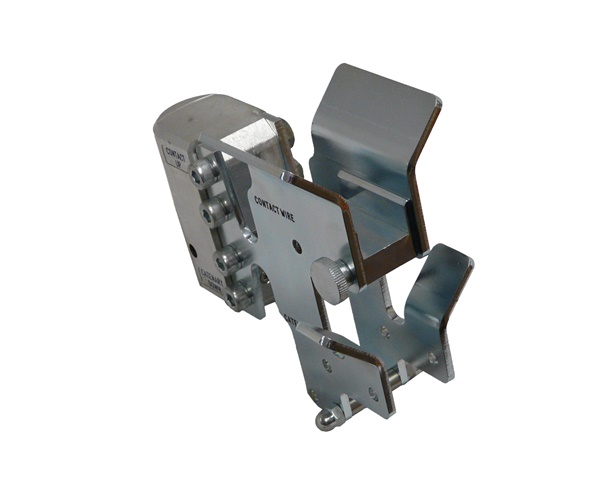

Network Rail Reference: 0039/127070 | Description: Bolted dropper removal tool attachment | |
|

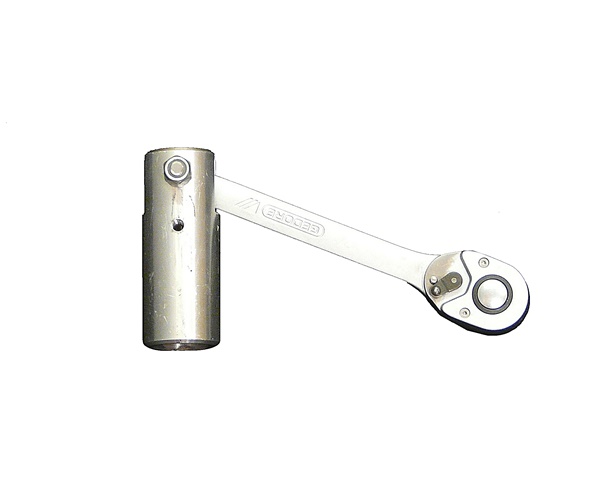

Network Rail Reference: 0039/127071 | Description: Ratchet tool attachment 1/2” square drive | |
|

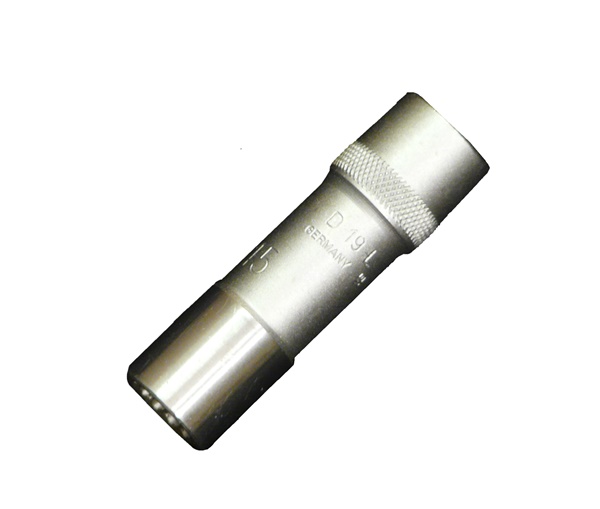

Network Rail Reference: 0039/127072 | Description: 15mm x 1/2” square drive bi-hexagon deep socket | |
|

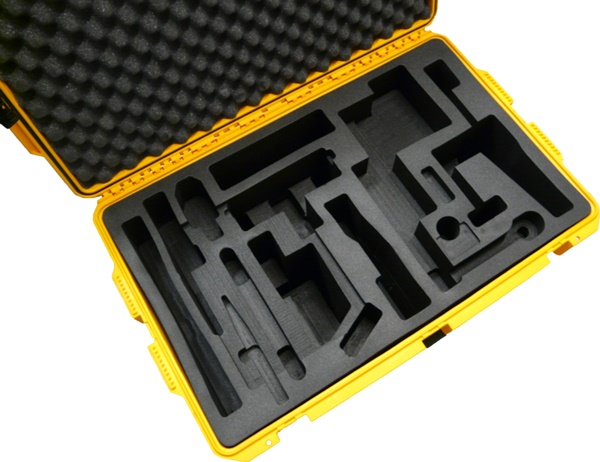

Network Rail Reference: 0039/127068 | Description: Peli storm case (yellow) – model iM2950 with foam insert | |
| Description: The items shown below are part of the above kit. However, if required the equipment to remove bolted droppers only can be ordered as a separate kit. | |||
|

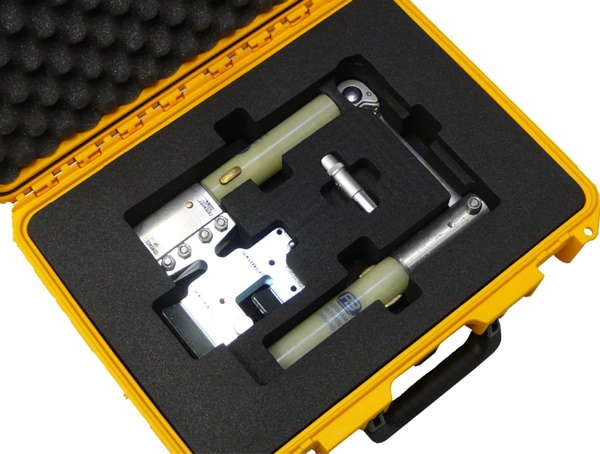

Network Rail Reference: 0039/127069 | Description: Bolted (Arthur Flury) dropper tool kit | |
| Network Rail Reference: Comprises: | |||
|
|
Network Rail Reference: 0039/127070 | Description: Bolted dropper removal tool attachment | |
|
|
Network Rail Reference: 0039/127071 | Description: Ratchet tool attachment 1/2” square drive | |
|
|
Network Rail Reference: 0039/127072 | Description: 15mm x 1/2” square drive bi-hexagon deep socket | |
|
|
Network Rail Reference: 0039/127064 | Description: Intermediate to top non-conductive pole adaptors x 2 | |
|

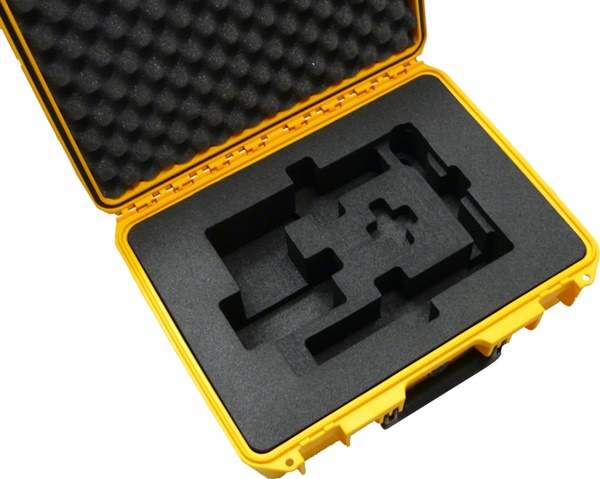

Network Rail Reference: 0039/127073 | Description: Peli storm case (yellow) – model iM2400 with foam insert |
