Pallet Truck for Cable Drums – 1200-1600mm diameter cable drums

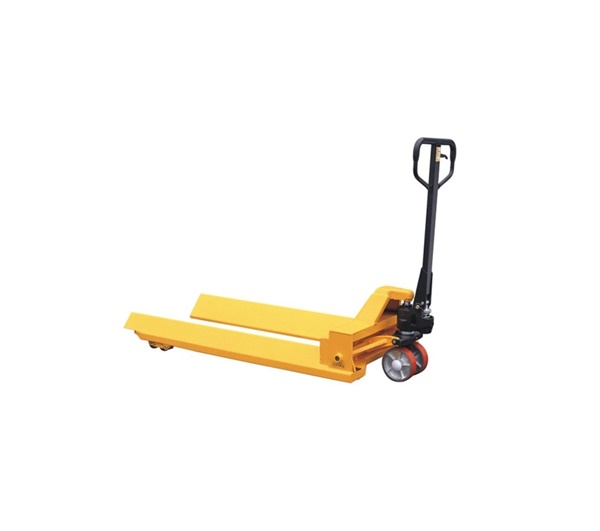

AC20R1500 Pallet truck for 1200-1600mm diameter cable drumsAC20R1500 Pallet truck for 1200-1600mm diameter cable drums

Product Information

Used by OHL/stores personnel to safely move large cable reel drums around the depot.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Part Number Description
AC20R1500 Pallet truck for 1200-1600mm diameter cable drums Part Number: AC20R1500 Description: Pallet truck for 1200–1600mm diameter cable drums. Capacity 2000Kgs.
Supplied with certificate of conformity.

The AC20R1500 is a pallet truck designed to carry cylindrical shaped objects, such as paper rolls, textile rolls and drums.

With a larger than average load capacity of 2000kg, this reel carrying truck be used for handling many types of industrial rolls and bales.

It features low noise double PU rollers front and rear and a top quality hydraulic pump – controlled through a 3 position lever on the handle.

The hydraulic pump is a whole cast unit, robust and durable with fine control of the lowering speed – also featuring an overload valve.

The fork size is 1150mm width x 1150mm long, with a gap between the forks of 760mm. The gap between the high point of the forks is 1040mm, so it is designed for roll diameters from 1200-1600mm.

Reel Carrying Trucks are designed for carrying horizontal transport loads, including reels, cable drums and coils.

Conforms to EN1757-2

Specifications:

  • Load capacity: 2000Kgs
  • Designed for reel sizes: 1200–1600mm
  • Fork dimensions (W x L): 1150 x 1150mm
  • Gap between raised points of the forks: 1040mm
  • Gap between the forks: 760mm
  • Steering wheel D x W: 200 x 50mm
  • Tandem load roller D x W: 80 x 70mm
