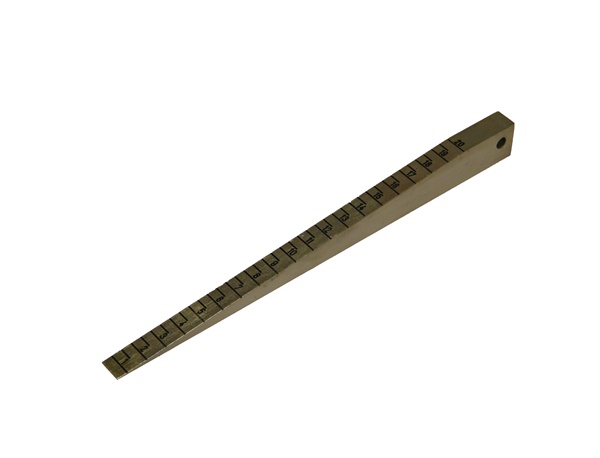

Taper Gauge – Graduated 0.5 – 20mm

Range 0.5 - 20mm x 0.5mm incrementsRange 0.5 - 20mm x 0.5mm increments

Product Information

Primarily used by welders to check clearances between the underside of the switchblade foot and chair slide pad. This clearance is often referred to as hogging. The gauge can also be used to generally check gaps/clearances for other components.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Part Number Network Rail Reference Description
URLT/017338 Taper gauge 0.5-20mm Part Number: LT/RG/32 Network Rail Reference: URLT/017338 Description: Taper gauge - graduated 0.5-20mm

This taper/hogging gauge is supplied as part of the Switchblade Angle Gauge Set, but is also available as a separate item for engineers wishing to use the same taper gauge for other applications.

  • Range 0.5mm – 20mm x 0.5mm increments

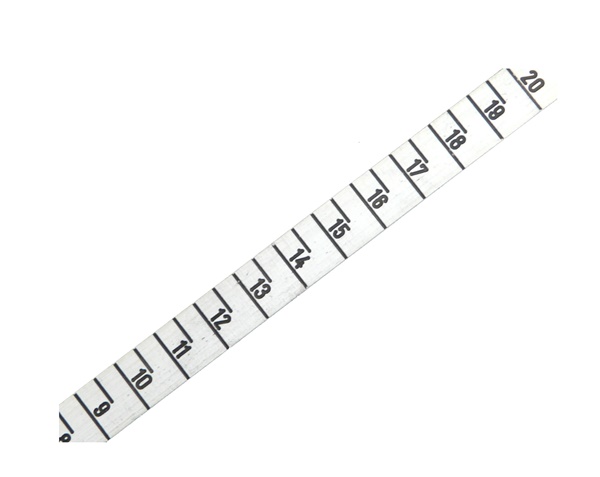

  • Clear engraved markings
  • Zinc coated for protection against corrosion
  • Overall dimensions 227mm long x 12mm wide x 20mm (highest)
  • Weight: 0.25Kgs
