Torque Wrench End Fittings

Open end fittingOpen end fitting

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Part Number Network Rail Reference Description
Description: Standard End Fittings

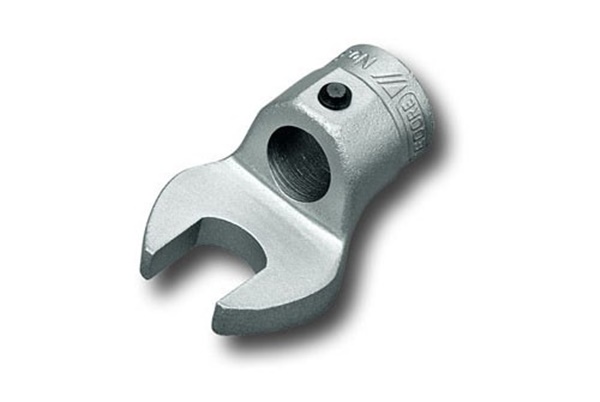

0111/109057 Open ended fitting 24mm to suit 16mm spigot torque wrench Part Number: N/A Network Rail Reference: 0111/109057 Description: Open ended fitting 24mm to suit 16mm spigot torque wrench
URLT/011010 Open ended fitting 30mm to suit 16mm spigot torque wrench Part Number: N/A Network Rail Reference: URLT/011010 Description: Open ended fitting 30mm to suit 16mm spigot torque wrench
0050/245930 Open ended fitting 30mm to suit 22mm spigot torque wrench Part Number: N/A Network Rail Reference: 0050/245930 Description: Open ended fitting 30mm to suit 22mm spigot torque wrench
URLT/010392 Open ended fitting 32mm to suit 16mm spigot torque wrench Part Number: N/A Network Rail Reference: URLT/010392 Description: Open ended fitting 32mm to suit 16mm spigot torque wrench
BH00/245931 Open ended fitting 32mm to suit 22mm spigot torque wrench Part Number: N/A Network Rail Reference: BH00/245931 Description: Open ended fitting 32mm to suit 22mm spigot torque wrench
BH00/245977 Open ended fitting 11/16" AF to suit 16mm spigot torque wrench Part Number: N/A Network Rail Reference: BH00/245977 Description: Open ended fitting 11/16" AF to suit 16mm spigot torque wrench
0039/033062 Ring end fitting  24mm with 16mm female fitting Part Number: N/A Network Rail Reference: 0039/033062 Description: Ring end fitting 24mm with 16mm female fitting

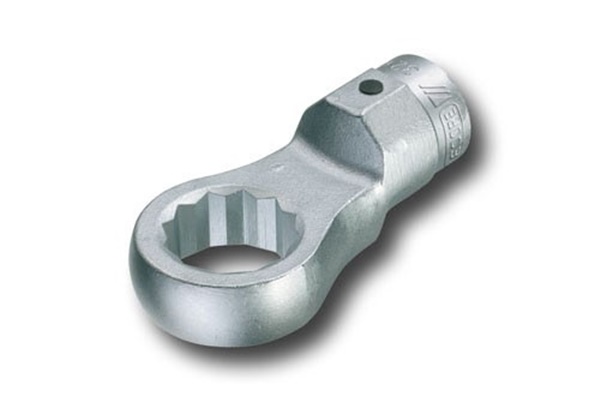

URLT/014122 Ring end fitting 30mm to suit 22mm spigot torque wrench Part Number: N/A Network Rail Reference: URLT/014122 Description: Ring end fitting 30mm to suit 22mm spigot torque wrench
0111/103727 Ring end fitting 41mm to suit 22mm spigot torque wrench Part Number: N/A Network Rail Reference: 0111/103727 Description: Ring end fitting 41mm to suit 22mm spigot torque wrench
0111/107995 Flared end fitting 11/16" AF to suit 16mm spigot torque wrench Part Number: N/A Network Rail Reference: 0111/107995 Description: Flared end fitting 11/16" AF to suit 16mm spigot torque wrench

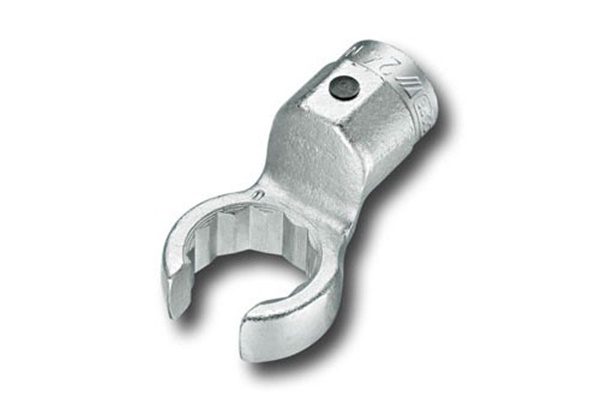

0111/107994 Flared end fitting 7/8" AF to suit 16mm spigot torque wrench Part Number: N/A Network Rail Reference: 0111/107994 Description: Flared end fitting 7/8" AF to suit 16mm spigot torque wrench

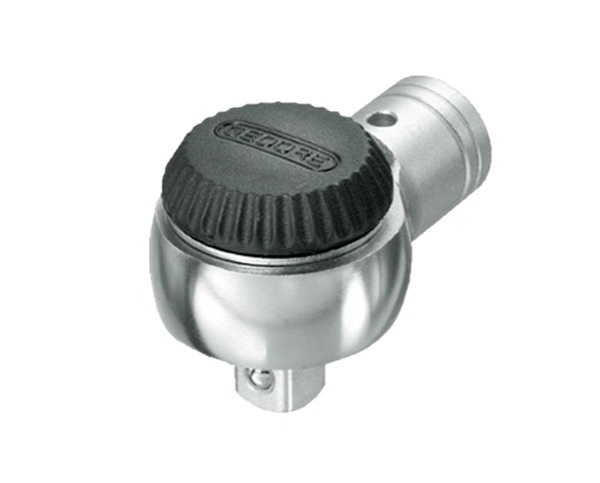

0039/030069 Ratchet head x 1/2" square drive to suit 16mm spigot torque wrench Part Number: N/A Network Rail Reference: 0039/030069 Description: Ratchet head x 1/2" square drive to suit 16mm spigot torque wrench
0039/127200 1.7/8" AF open ended x 22mm female torque wrench fitting Part Number: N/A Network Rail Reference: 0039/127200 Description: 1.7/8" AF open ended x 22mm female torque wrench fitting
Description: Special End Fittings

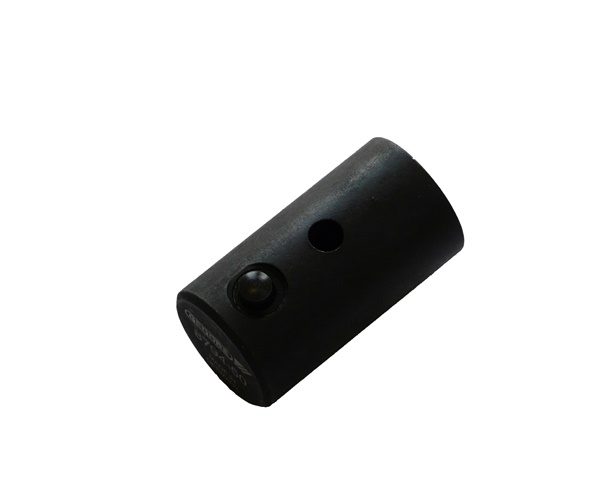

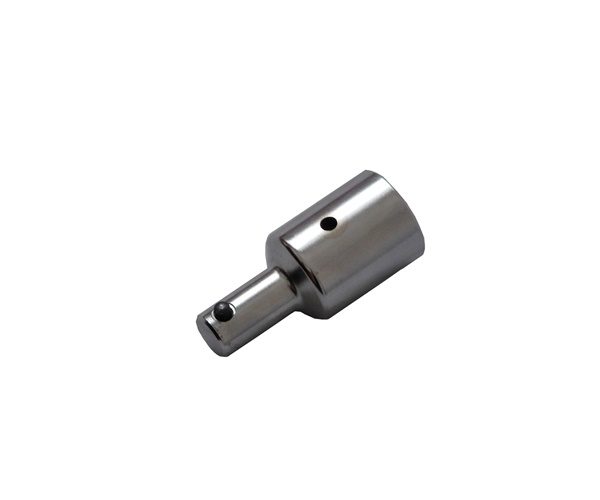

0094/008031 16mm to 22mm spigot adaptor Part Number: N/A Network Rail Reference: 0094/008031 Description: 16mm to 22mm spigot adaptor

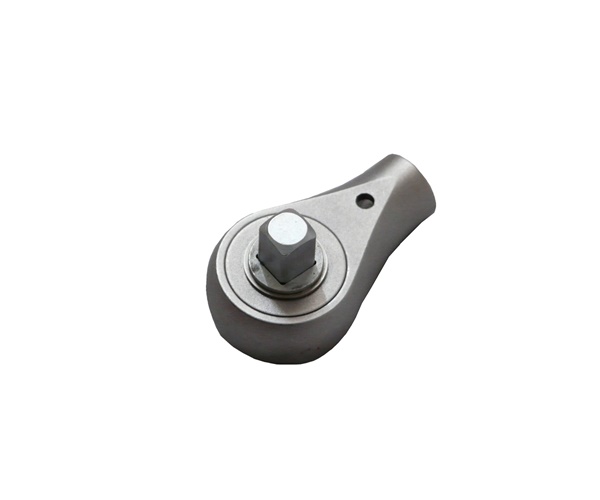

0094/008032 1/2" square drive ratchet head – as supplied in S&T torque wrench kits Part Number: N/A Network Rail Reference: 0094/008032 Description: 1/2" square drive ratchet head – as supplied in S&T torque wrench kits

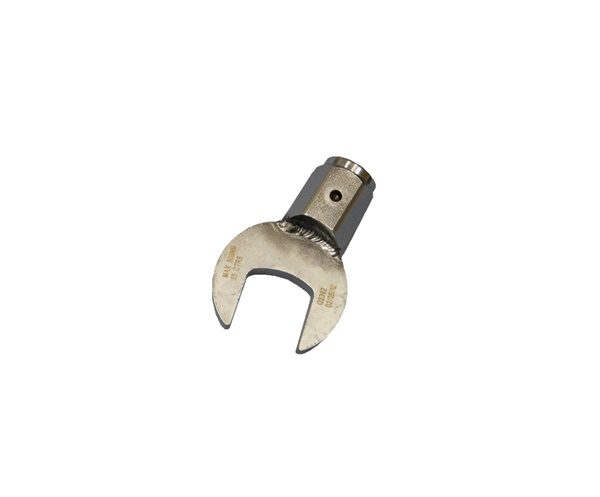

0094/008036 11/16" BSW (30mm) open ended fitting Part Number: N/A Network Rail Reference: 0094/008036 Description: 11/16" BSW (30mm) open ended fitting

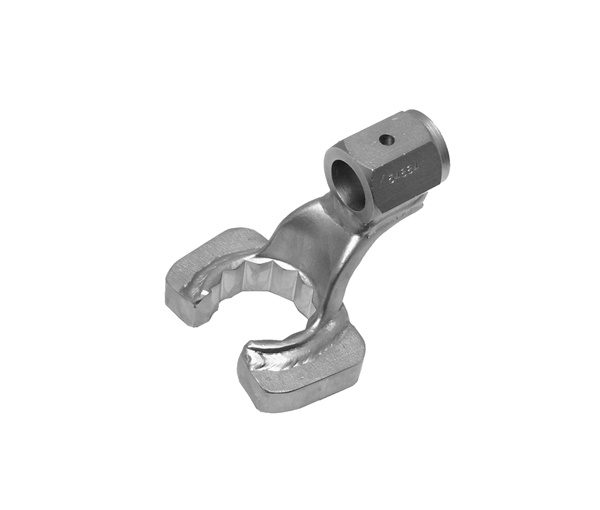

LT/TK/06/20 7/8" BSW flare ended x 22mm female torque wrench fitting Part Number: LT/TK/06/20 Network Rail Reference: N/A Description: 7/8" BSW flare ended x 22mm female torque wrench fitting
0039/026031 11/16" BSW open ended x 16mm female torque wrench fitting Part Number: N/A Network Rail Reference: 0039/026031 Description: 11/16" BSW open ended x 16mm female torque wrench fitting

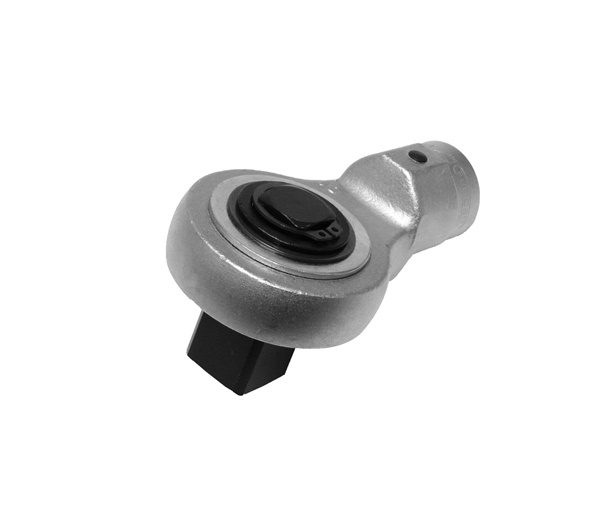

0094/003079 1" square drive x 22mm female non reversible ratchet head Part Number: N/A Network Rail Reference: 0094/003079 Description: 1" square drive x 22mm female non reversible ratchet head
0094/003078 Insulated check rail extension piece 1.5/8" AF open end with 22mm female spigot adaptor Part Number: N/A Network Rail Reference: 0094/003078 Description: Insulated check rail extension piece 1.5/8" AF open end with 22mm female spigot adaptor
Manufactured and tested to BS8020:2011

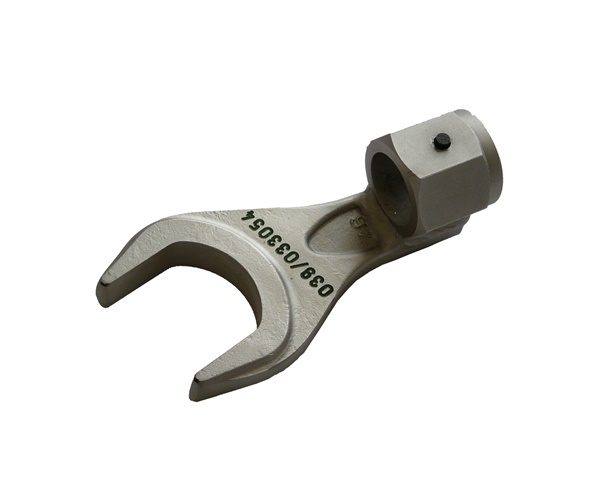

0039/033054 46mm AF open ended short extension piece for Hardlock nuts (female nut) Part Number: N/A Network Rail Reference: 0039/033054 Description: 46mm AF open ended short extension piece for Hardlock nuts (female nut)

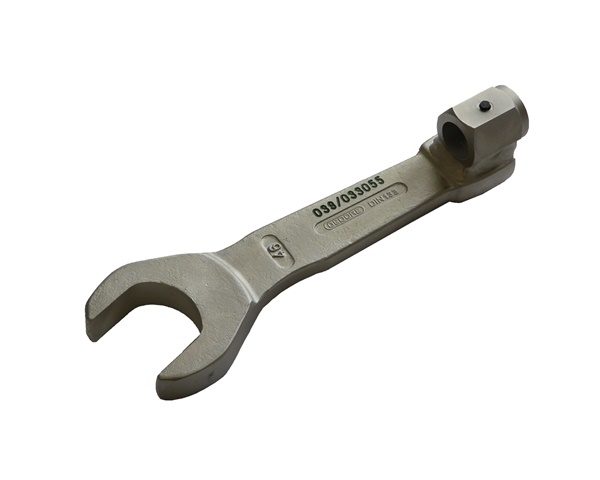

0039/033055 46mm AF open ended long extension piece for Hardlock nuts (male nut) Part Number: N/A Network Rail Reference: 0039/033055 Description: 46mm AF open ended long extension piece for Hardlock nuts (male nut)

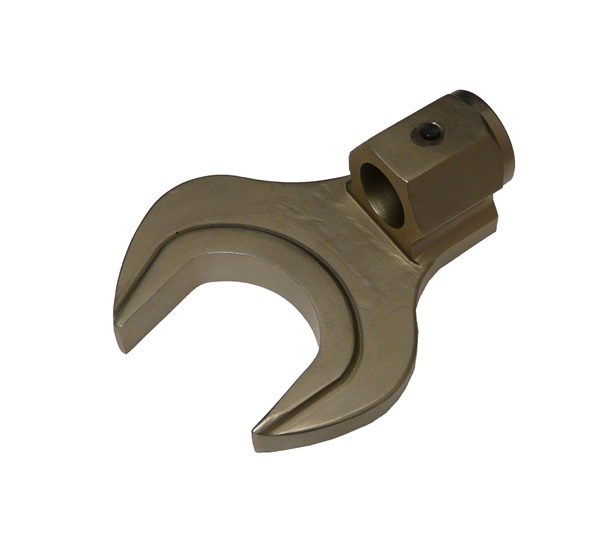

0094/008059 50mm open end fitting x 22mm Part Number: N/A Network Rail Reference: 0094/008059 Description: 50mm open end fitting x 22mm

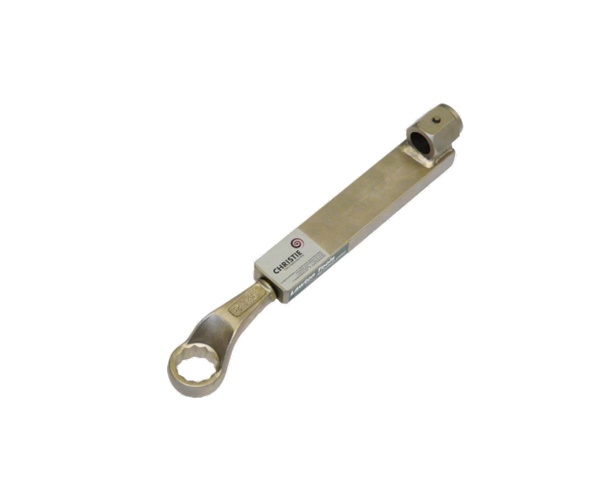

0057/073253 Torque wrench/breaker bar extension piece (22mm female to 28mm male) For the torque loading of fasteners the extension piece is engraved  input 340Nm, output 440Nm Part Number: N/A Network Rail Reference: 0057/073253 Description: 0057/073253 Torque wrench/breaker bar extension piece (22mm female to 28mm male)
For the torque loading of fasteners the extension piece is engraved input 340Nm, output 440Nm
0057/073254 30mm ring-ended fitting. For the torque loading of fasteners the fitting is engraved input 340Nm, output 440Nm Part Number: N/A Network Rail Reference: 0057/073254 Description: 30mm ring-ended fitting. For the torque loading of fasteners the fitting is engraved
input 340Nm, output 440Nm

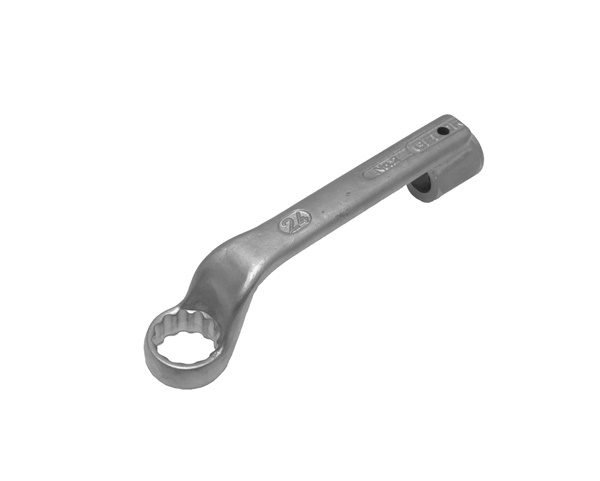

URLT/013698 24mm extended reach ring end x 16mm female torque wrench fitting Part Number: N/A Network Rail Reference: URLT/013698 Description: 24mm extended reach ring end x 16mm female torque wrench fitting

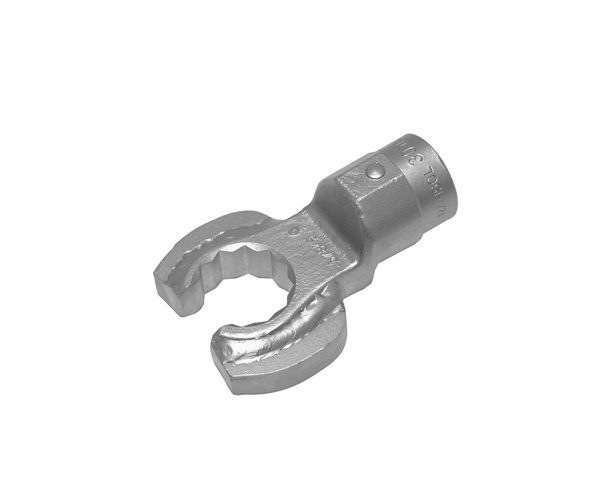

LT/TK/06/18 30mm flare ended x 22mm female torque wrench fitting Part Number: LT/TK/06/18 Network Rail Reference: N/A Description: 30mm flare ended x 22mm female torque wrench fitting

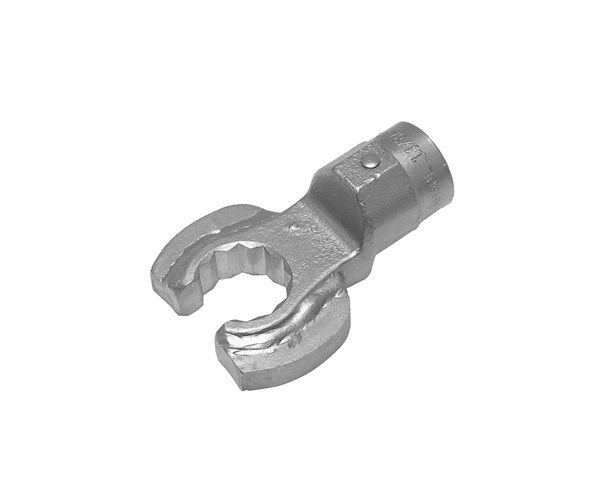

LT/TK/06/17 1.1/8" AF flare ended x 22mm female torque wrench fitting Part Number: LT/TK/06/17 Network Rail Reference: N/A Description: 1.1/8" AF flare ended x 22mm female torque wrench fitting
LT/TK/06/20 7/8" BSW flare ended x 22mm female torque wrench fitting Part Number: LT/TK/06/20 Network Rail Reference: N/A Description: 7/8" BSW flare ended x 22mm female torque wrench fitting
