Straight Edge 4 Nibbed – 1 metre for Dipped and Battered Joints

0039/025024 4 Nibbed 1 metre straight edge0039/025024 4 Nibbed 1 metre straight edge

Product Information

Manufactured from the standard Lawton Tools 1 metre straight edge, this modified version is used for the alignment of dipped/battered rail joints prior to welding.

Enquire about this product

Download Product Page
Add all to your
session list
Download item
PDF datasheet
Thumbnail Network Rail Reference Description

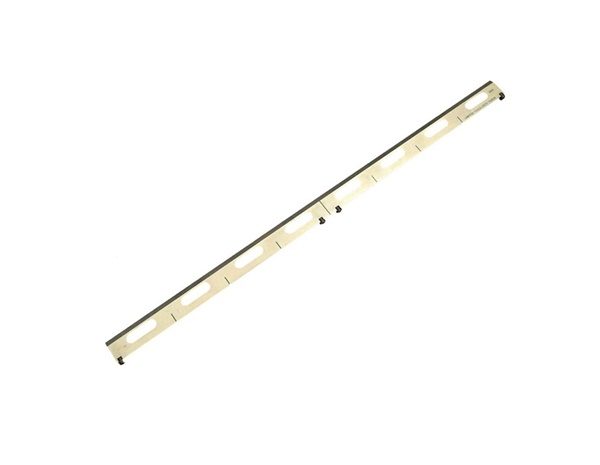

0039/025024 4 Nibbed 1 metre straight edge Network Rail Reference: 0039/025024 Description: 4 Nibbed 1 metre straight edge for the alignment of dipped and battered joints
  • Outer nib height = 6.0mm +/- 0.05

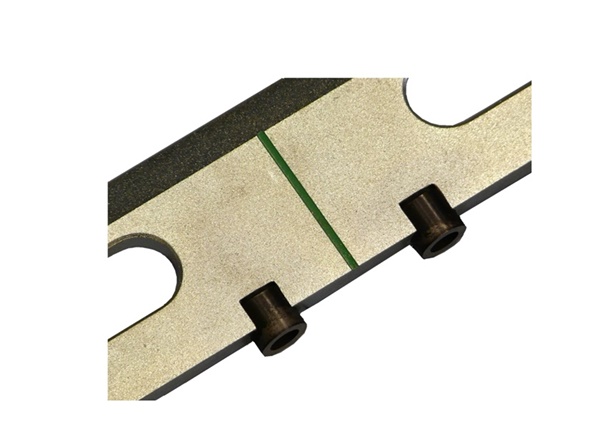

  • Inner nib height = 4.5mm +/- 0.05
  • Dimensions: 1016mm long x 50.0mm high x 8.0mm thick
  • 7 engraved check positions

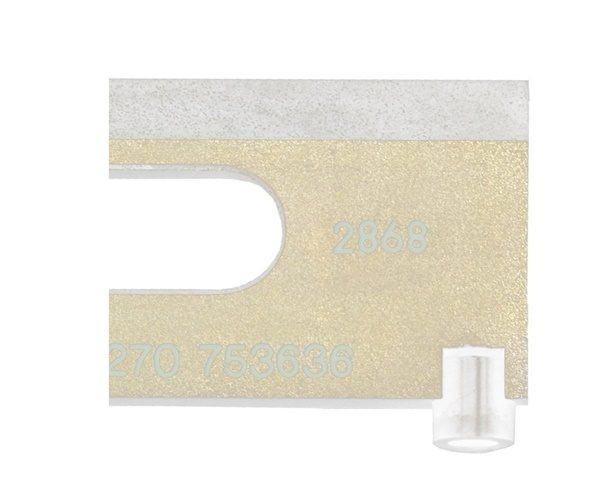

  • Individual serial number for asset tracking / periodic calibration recording
  • Zinc coated for corrosion protection
  • Supplied with certificate of conformity
  • Supplied in a yellow polyethylene protective storage box
  • Weight = 2.35Kgs (without box)
  • Weight = 3.95Kgs (with box)
